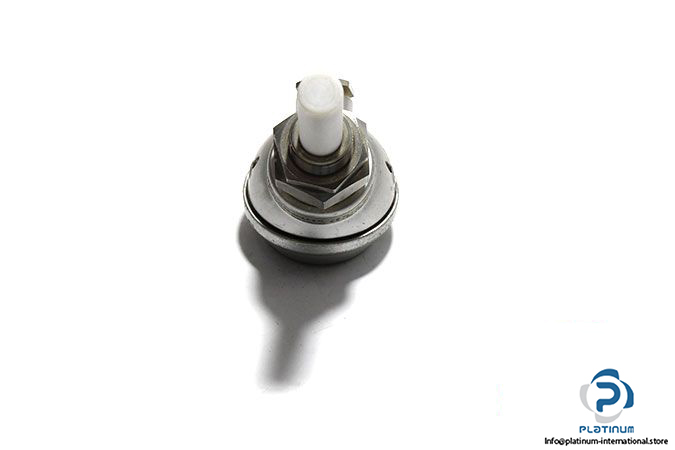

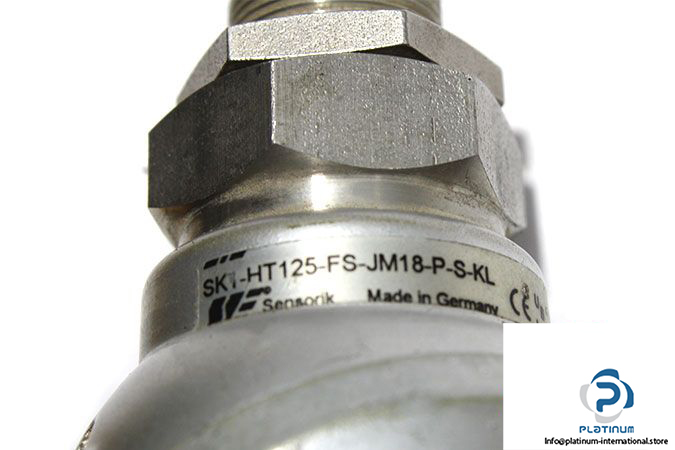

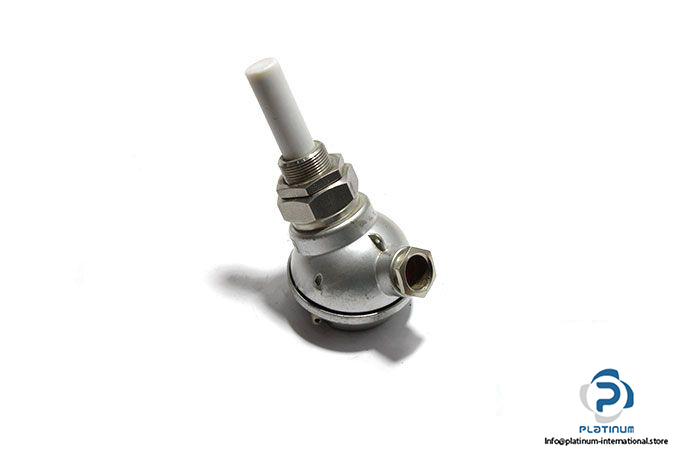

Siesensorik SK1-HT125-FS-JM18-P-S-KL Level Capacitive Sensor

Manufacturer: Balluff SIE Sensorik

Type: Level Capacitive Sensor

Series: SK1

Model: SKI-HT125-FS-JM18-PS-KL

Replaced by: BCS006H

Switching Frequency: 5 Hz

Operating Voltage Ub: 10 … 35 VDC

Insulation Voltage Ui: 75 V DC

Switching Output: PNP Normally Open (NO)

Pressure Rating: Max. 10 bar

Thread: M18x1

Protection Class: IP67, sensing surface: IP68 10 bar

Ambient Temperature: -30 … 125 °C

Weight: 0.17 kg
