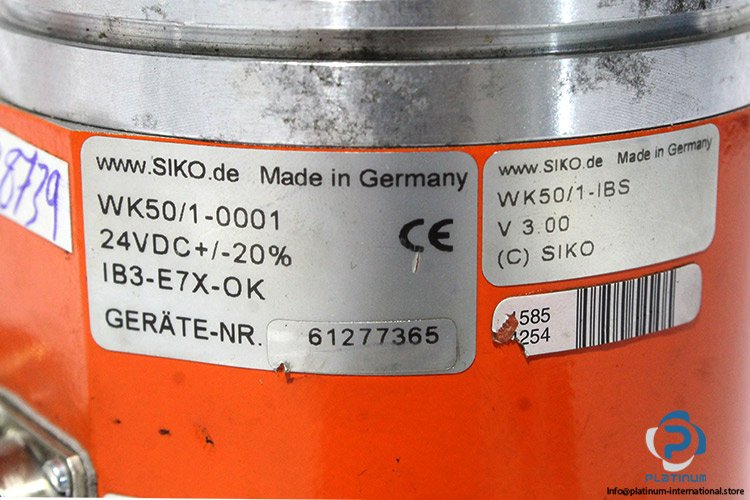

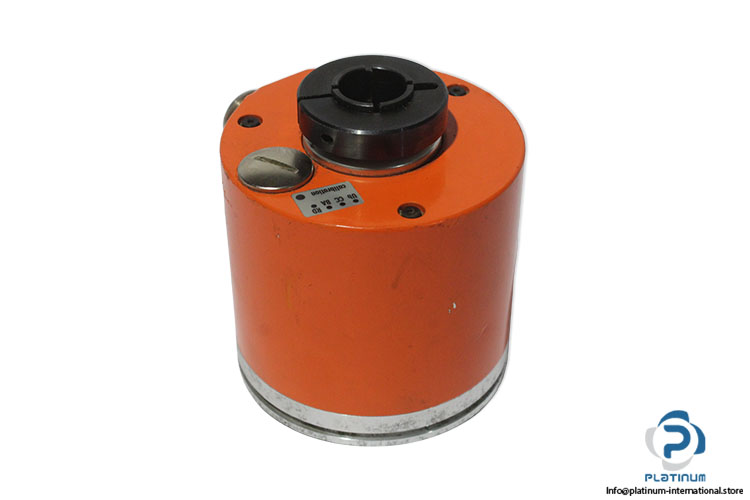

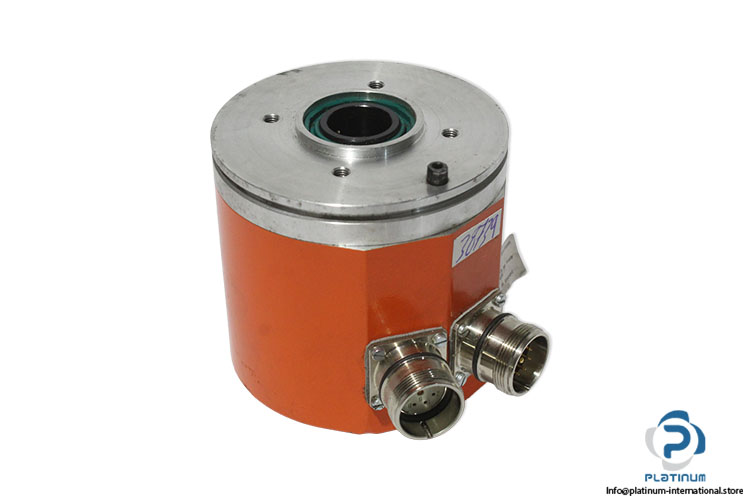

SIKO WK50/1-0001 Angle Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
Absolute Angle Encoder Siko absolute angle encoder with 24 VDC supply, hollow shaft, RS 485 output and up to 8192 pulses/revolution for precise industrial position measurement.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Code | IB3-E7X-OK |
| Device Nr. | 61277365 |
| Supply Voltage | 24 VDC |
| Shaft Design | Hollow Shaft |
| Output driver | RS 485 |
| Maximum Speed | 3000 rpm (2000 rpm with IP65 rating) |
| Max. pulses/revolution | 8192 |
| Max. speed | 3000 rpm |
| Power consumption | <1.3 W |
| Permissible load/channel | max. 1 MHz |
| SSI clock rate min./max. | 100 kHz/500 kHz |
| Signal level high typ. | 3.8 V |
| Signal level low typ. | 1.3 V (20 mA) |
| Shaft material | browned steel, on double ball bearing |
| Housing material | aluminum |

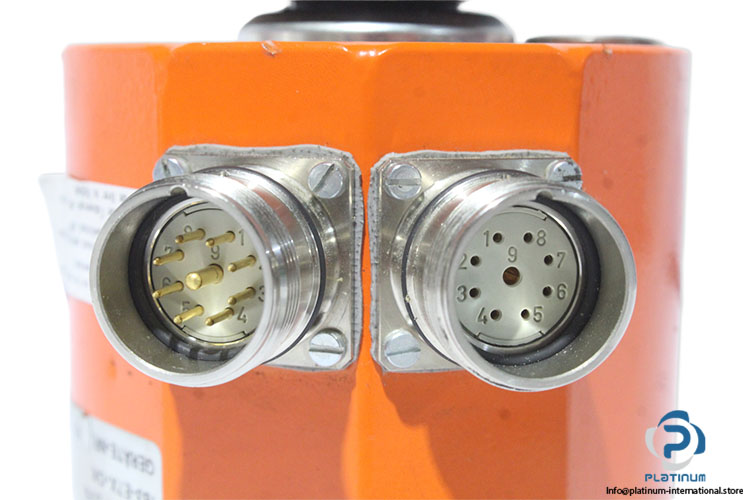

| Type of connection | with mating connectors (Male,female-9PINS) |
| Operating temperature | 0 ... +60 °C |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1098312 |
| Weight | 1,04 |
