Siemens 1FK7063-5AF71-1EH2 Servo Motor
Neu
Auf Lager2 EinheitenVersandbereit
1 100,00$
SERVO MOTOR
SIEMENS 1FK7063-5AF71-1EH2 servo motor delivers high torque and speed with integrated A-2048 encoder and 24VDC brake. Operating at 263 V, ideal for advanced motion systems.1FK7063-5AF71-1EH224VDCA-2048AutomationBrakeControlDriveEncoderHighIndustrialIP65MotionmotorPrecisionServoSiemensTorque
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

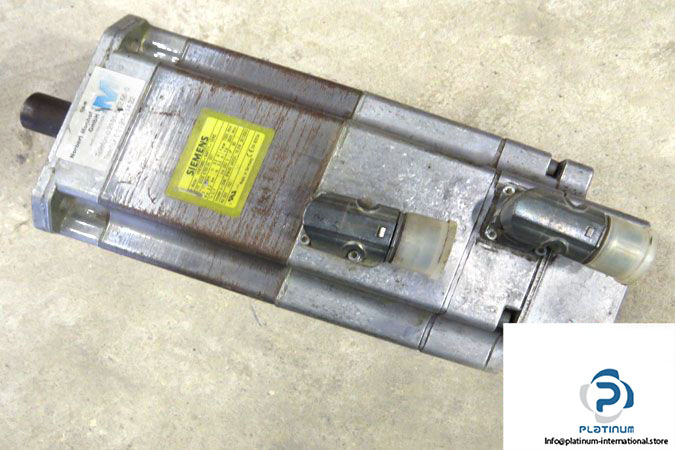

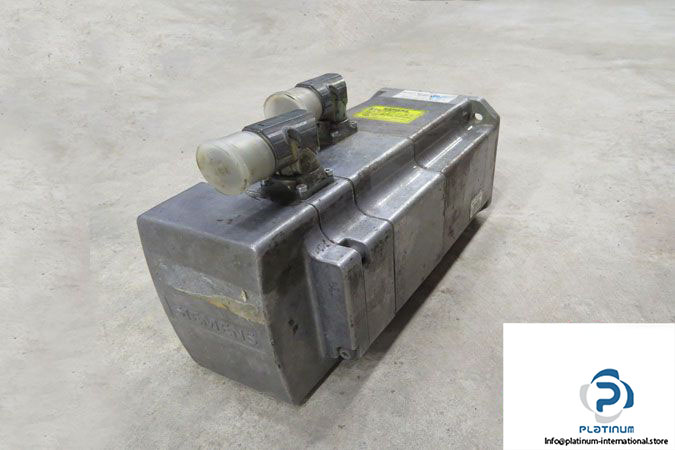

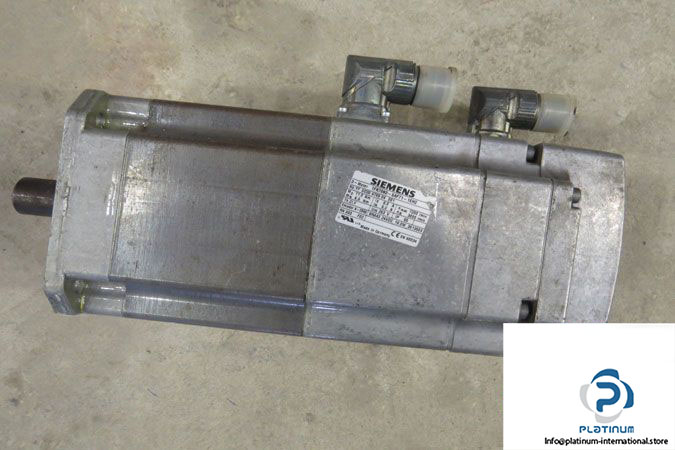

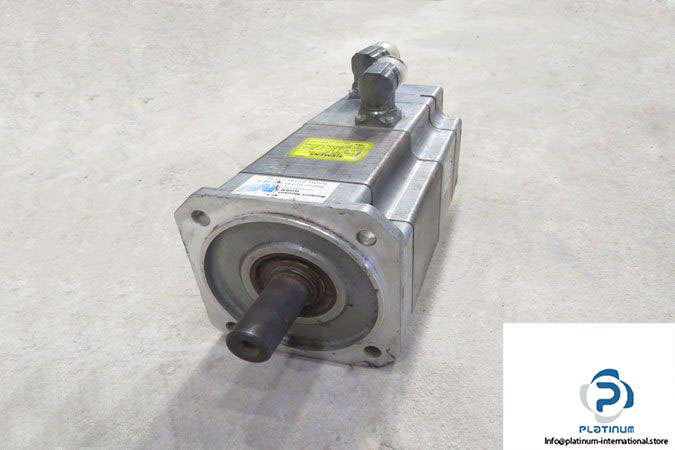

SIEMENS 1FK7063-5AF71-1EH2 SERVO MOTOR
The SIEMENS 1FK7063-5AF71-1EH2 is a high-performance servo motor designed for demanding automation tasks. With integrated encoder and brake, this motor ensures precise control, efficient operation, and high reliability in industrial systems.

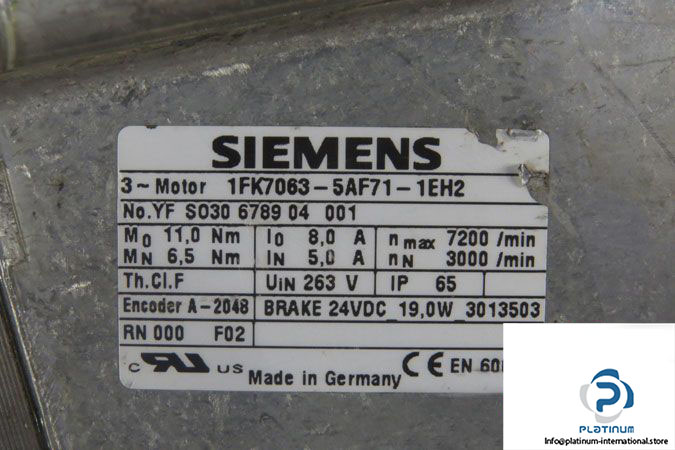

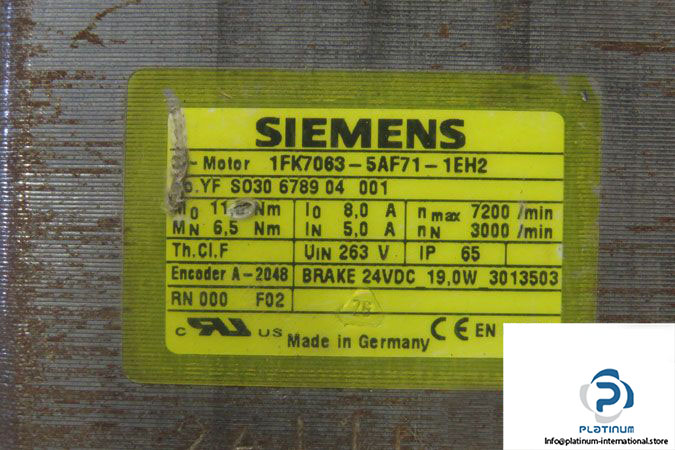

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FK7063-5AF71-1EH2
MRN: S030678904001
| Attached Encoder | A-2048 |
| Attached Brake | 3013503 (24VDC, 19 W) |
| Supply Voltage | 263 V |
| Rated Torque | 11 Nm |
| Nominal Torque | 6.5 Nm |
| Rated Current | 8 A |
| Nominal Current | 5 A |
| Rated Speed | 7200 rpm |
| Nominal Speed | 3000 rpm |
| Protection | IP65 (EN60034) |
