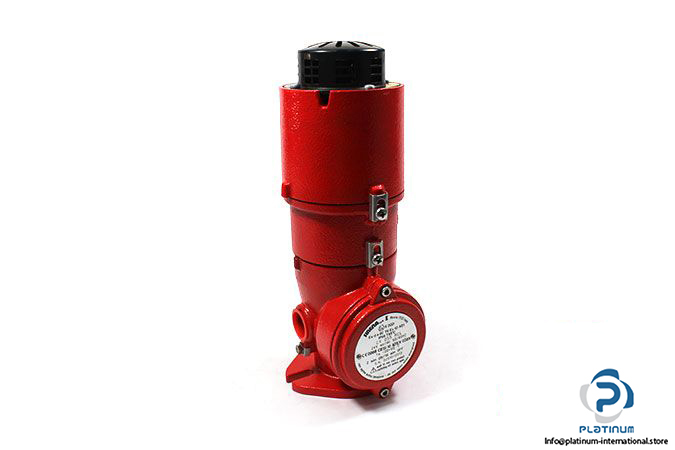

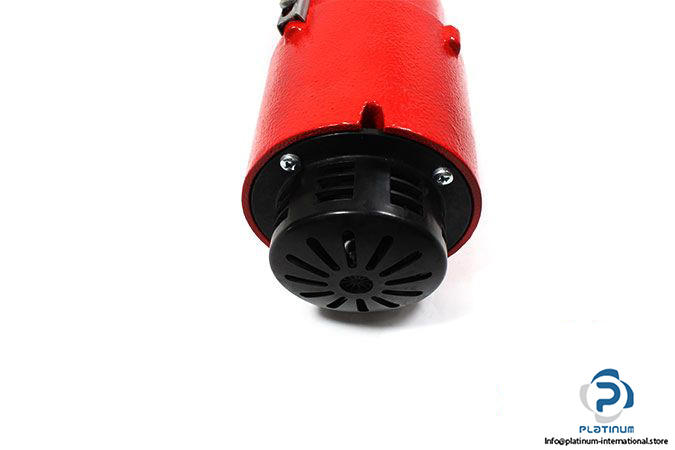

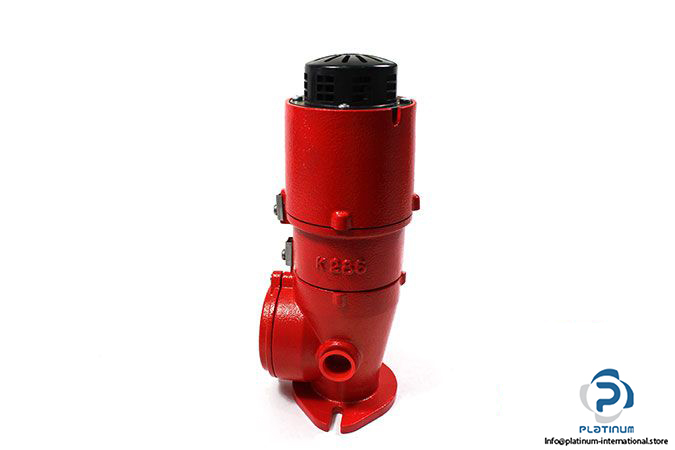

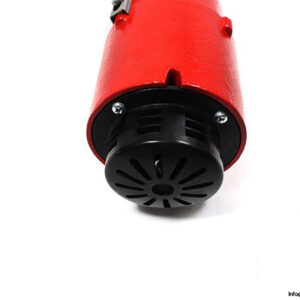

Sirena EX 055 MCL Explosion-Proof Electromechanical Siren

Manufacturer: SIRENA

Type: EXPLOSION-PROOF ELECTROMECHANICAL SIREN

Model: EX 055 MCL

MRN: EX D E IIC T6 EX tD A21

Serial No.: 02510/2013

Features:

• engineered and manufactured according to the strictest certification and electromagnetic compatibility standards.
• The MINICELERE range of sirens are of high mechanicalprecision and guarantee maximum performance with regard to sound level and product reliability.
• Explosion-proof electromechanical sirens for use in Group II areas, Zones 1, 2, and 21, 22 explosive atmospheres.

Material:

Copper free aluminium alloy

POLYESTER PAINT RAL 3020

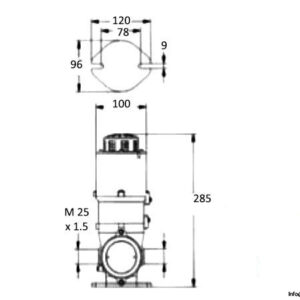

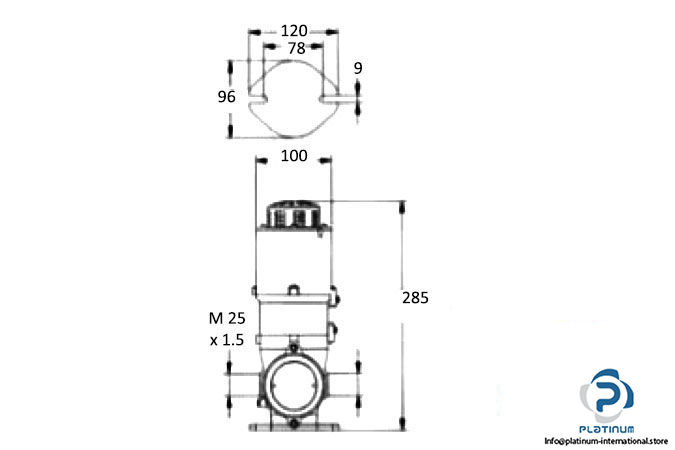

Dimensions: 285 mm x 100 mm

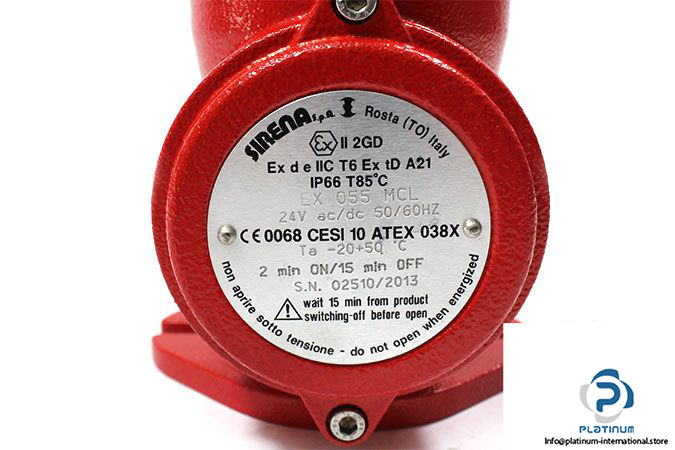

Approvals: II 2GD Ex d e IIC T6 Ex Td A21 CESI 10 ATEX 038 X

Voltage: 24 V ac/dc

Sound level:

Min.: 0 dB

Max.: 107 dB

Frequency: 50 – 60 Hz

Protection Class: IP 66

Protection Proof: EX (explosion)

Maximum surface temperature: T6

Temperature: -20 … 50 °C

Weight: 2.51 kg
