SKF 2209 E-2RS1TN9 Self-Aligning Ball Bearing
Selbstausrichtendes Kugellager Das SKF 2209 E 2RS1 TN9 selbstausrichtende Kugellager verfügt über einen Bohrungsdurchmesser von 45 mm, einen Außendurchmesser von 85 mm und eine 2RS1 Abdichtung und bietet zuverlässige radiale und axiale Lagerunterstützung mit Ausrichtungsausgleich in Hochgeschwindigkeitsanwendungen.

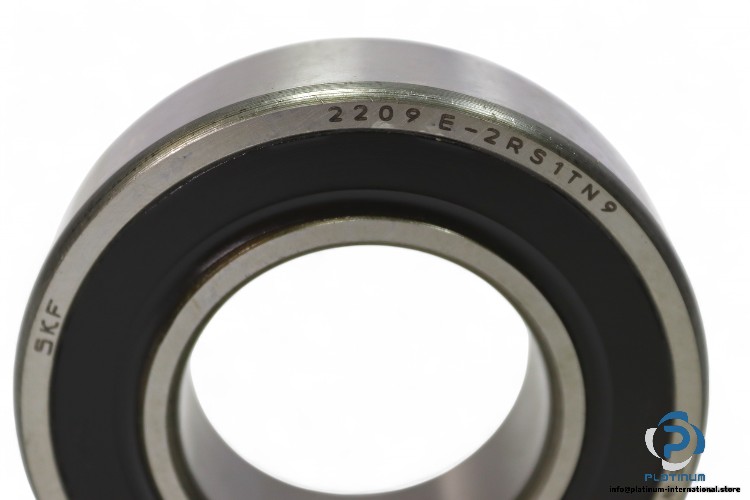

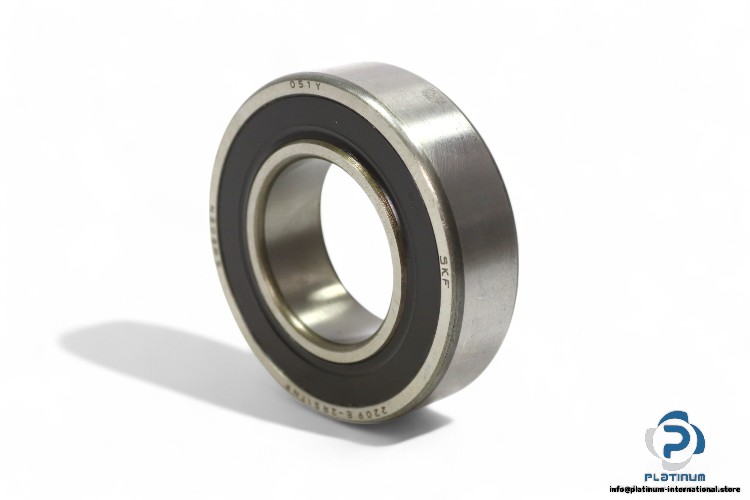

SKF 2209 E 2RS1 TN9 Self-Aligning Ball Bearing
The SKF 2209 E 2RS1 TN9 Self-Aligning Ball Bearing is designed to handle both radial and axial loads while compensating for misalignment, ensuring smooth and efficient operation in machinery. With high dynamic and static load ratings, this bearing provides exceptional durability and performance in demanding applications.
Manufacturer: SKF
Type: SELF-ALIGNING BALL BEARING
Model: 2209 E 2RS1 TN9
This self-aligning ball bearing is ideal for applications that require both radial and axial load support, as well as alignment compensation. With robust sealing and high-speed capabilities, it ensures optimal performance and longevity.
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 85 mm |
| Bearing Width (B) | 23 mm |
| Dynamic Load Rating (Cr) | 22900 N |
| Static Load Rating (C0r) | 7800 N |
| Fatigue Load Limit | 0.4 kN |
| Limiting Speed | 5300 rpm |
| Reference Speed | 15000 rpm |
| Bore Type | Cylindrical |
| Cage | TN9, Glass fiber reinforced PA66 cage, rolling element centered |
| Sealing | 2RS1, Contact seal on both sides |
