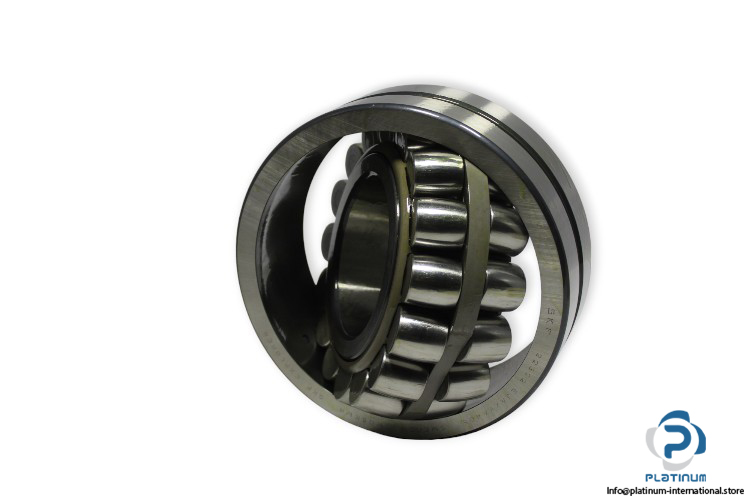

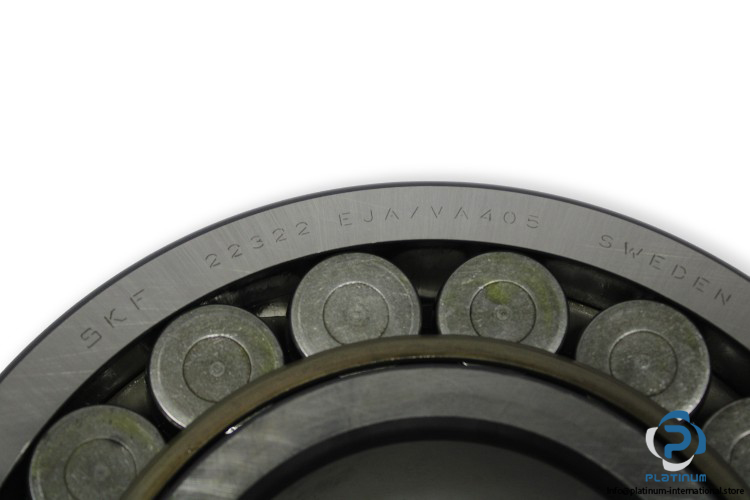

SKF 22322 EJA/VA405 Spherical Roller Bearing

Manufacturer: SKF
Type: Spherical roller bearing for vibratory applications
Model: 22322EJA/VA405

Dimensions
Bore Diameter d: 110 mm
Outer diameter D: 240 mm
Width B: 80 mm
Basic load ratings:
Dynamic C_r: 989 kN
Static C_0r: 1120 kN
Fatigue load rating: 100 kN
Reference Speed: 2000 rpm
Limiting speed:  2800 rpm
Radial internal clearance: C4
Cage: Surface-hardened sheet metal
Tolerance class for dimensions:  Normal, bore to P5 and outside diameter P6
