SKF 23040 CC/W33 Spherical Roller Bearing
Kugellager SKF 23040CC/W33 mit optimiertem CC-Design, Blechkäfig und W33-Nachschmierfunktion für schwere Industrieanwendungen.

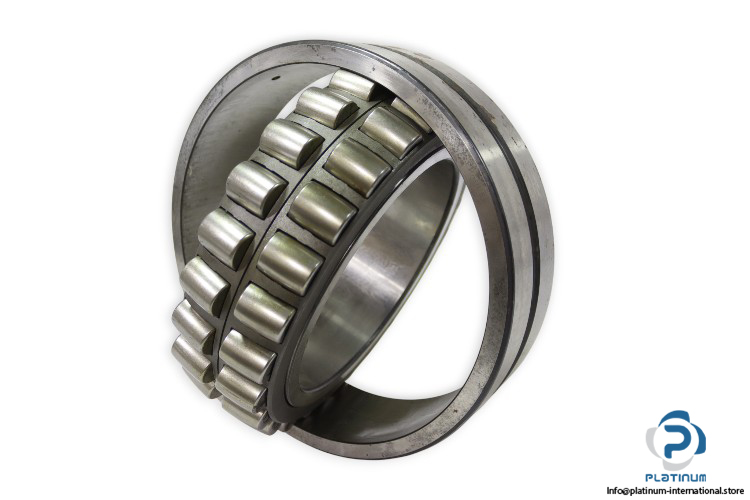

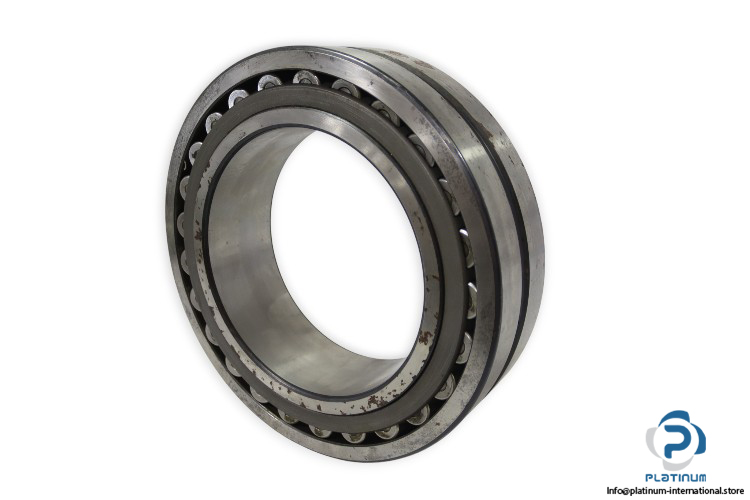

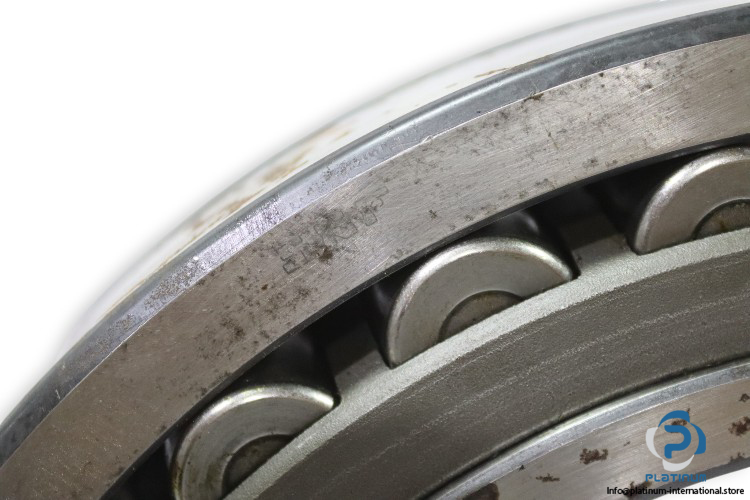

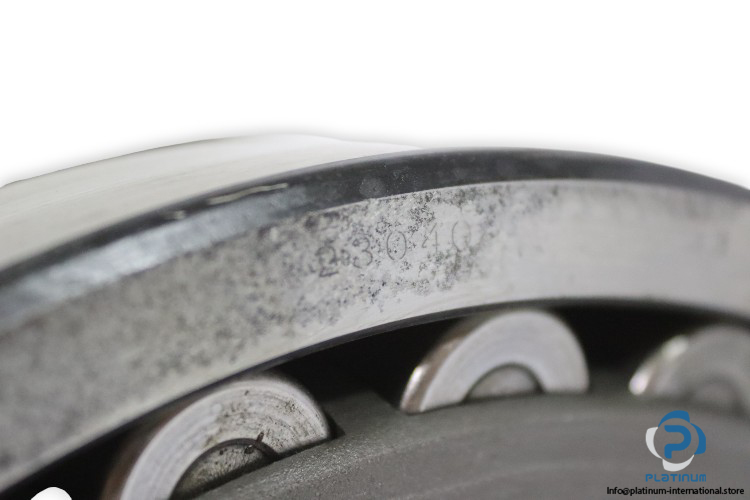

SKF 23040CC/W33 Spherical Roller Bearing
A high-performance spherical roller bearing manufactured by SKF, designed to accommodate heavy radial loads and axial loads in both directions. This bearing features an optimized internal design with a sheet metal cage and integrated relubrication features, making it suitable for demanding industrial applications requiring high load capacity, reliable lubrication, and long service life.
Manufacturer: SKF
Type: Spherical Roller Bearing with Relubrication Features
Model: 23040CC/W33
Application:
Heavy-duty industrial machinery, gearboxes, conveyors, crushers, vibrating equipment, and applications requiring high load capacity, misalignment accommodation, and reliable relubrication
| Bore Diameter (d) | 200 mm |
| Outer Diameter (D) | 310 mm |
| Width (B) | 82 mm |
| Basic Dynamic Load Rating | 1058 kN |
| Basic Static Load Rating | 1530 kN |
| Reference Speed | 1800 r/min |
| Limiting Speed | 2200 r/min |
| Fatigue Load Limit | 137 kN |
| Cage | Sheet Metal |
| Design | CC, Features Plus Optimized Internal Design |
| Lubrication | W33, 3 Lubrication Holes (Equally Spaced) and a Lubrication Groove on the Outer Ring |
