SKF 23228 CCK/W33 Spherical Roller Bearing
Neu
Auf Anfrage verfügbar
SPHERISCHER WAGENLAGER SKF 23228 CCK/W33 Sphärisches Wälzlager mit 140 mm Bohrung, 250 mm Außendurchmesser und 88 mm Breite. Verfügt über hohe Tragfähigkeit, konische Bohrung, W33-Schmierung und Blechkäfig für schwere Anwendungen.
11214023228250bearingboreCageCapacityCCK/W33diameterDutyHeavyHighLoadlubricationMetalmmOuterRollersheetSKFSphericaltaperedW33
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

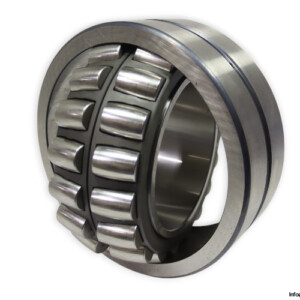

SKF 23228 CCK/W33 SPHERICAL ROLLER BEARING
The SKF 23228 CCK/W33 Spherical Roller Bearing is designed for heavy-duty applications requiring durability, high load capacity, and precise performance. With a tapered bore and annular groove lubrication system, it offers enhanced reliability and extended service life in demanding environments.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 23228 CCK/W33
| Bore Diameter (d) | 140 mm |
| Outer Diameter (D) | 250 mm |
| Width (B) | 88 mm |
| Basic Load Ratings, Radial - Dynamic (Cr) | 962000 N |
| Basic Load Ratings, Radial - Static (C0r) | 1250000 N |
| Fatigue Load Limit | 120000 N |
| Limiting Speed | 2400 rpm |
| Reference Speed | 1700 rpm |
| Bore Type | K (Tapered 1:12) |
| Lubrication | W33 (Annular groove and three lubrication holes in outer ring) |
| Cage | Sheet metal |
