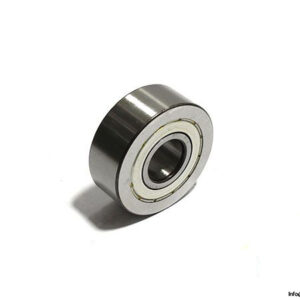

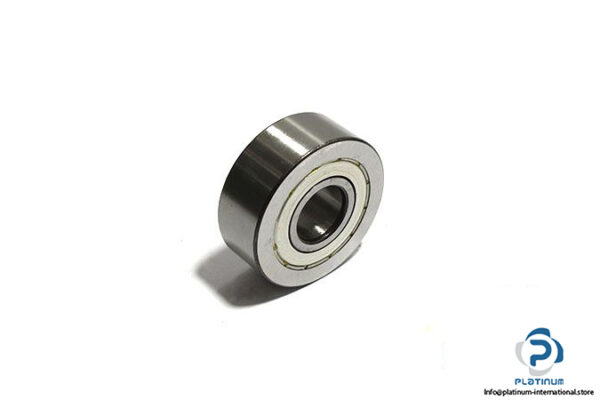

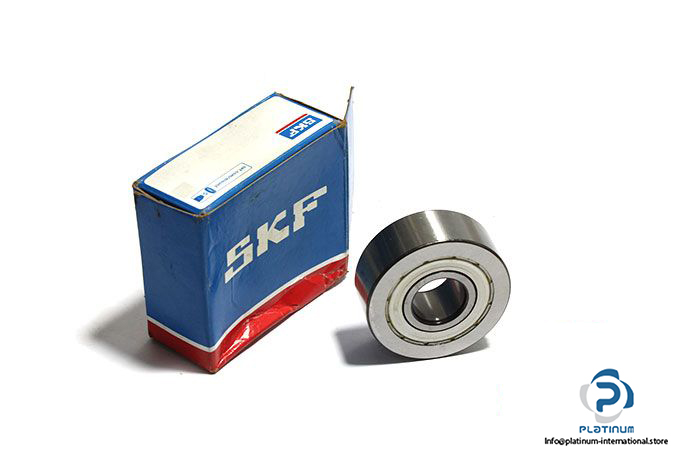

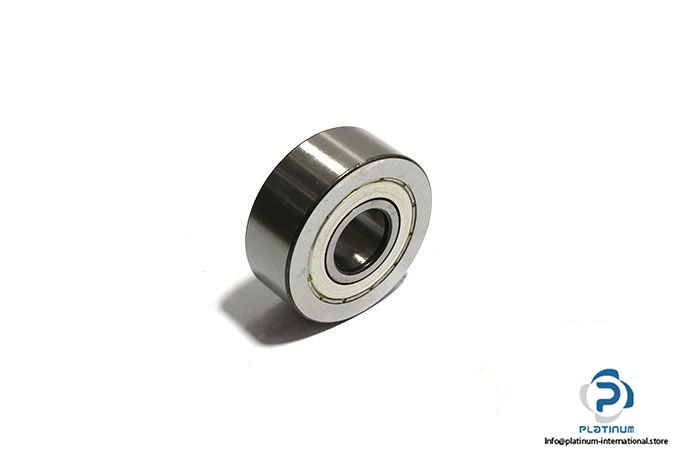

SKF 305703 C-2Z CAM Roller

Manufacturer: SKF ‎

Type: yoke-type track rollers based on ball bearing

Model: 305703C-2Z

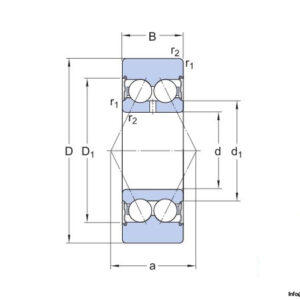

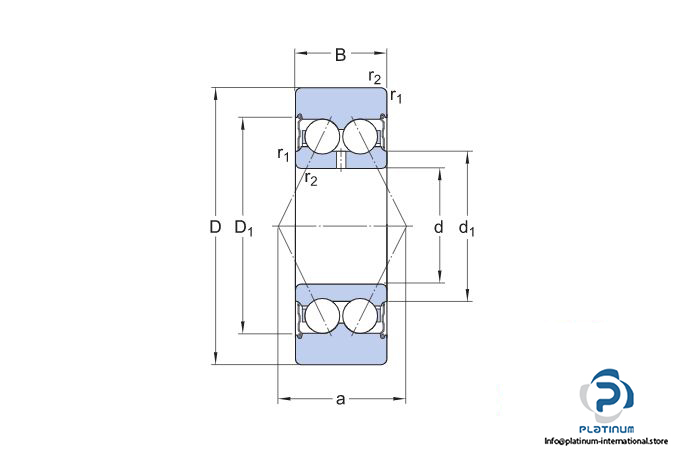

Dimensions:

Bore Diameter d: 17 mm

Outer diameter D: 47 mm

Width B: 17.5 mm

Basic load ratings:

Dynamic C: 13 kN

Static C₀: 7.35 kN

Fatigue load limit P_u: 0.315 kN

Maximum dynamic radial loads F_r: max. 9.3 kN

Maximum static radial loads F_0r: max. 13.4 kN

Limiting speed: 8000 rpm

Seal: Metal (Shielded on both Sides)

Weight: 0.17 Kg
