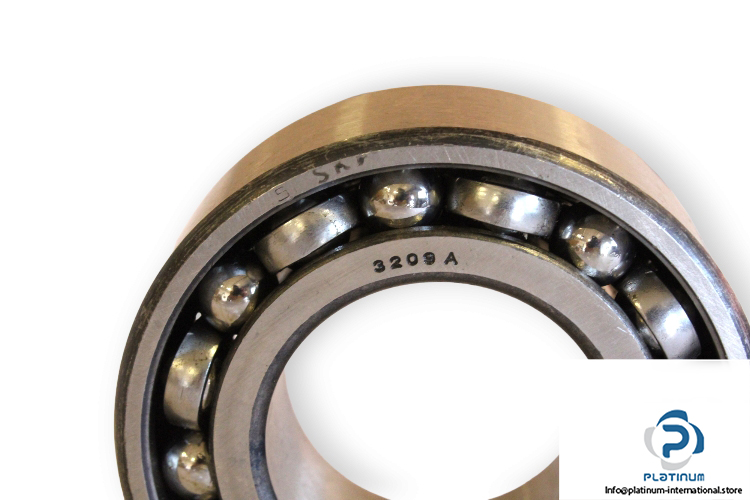

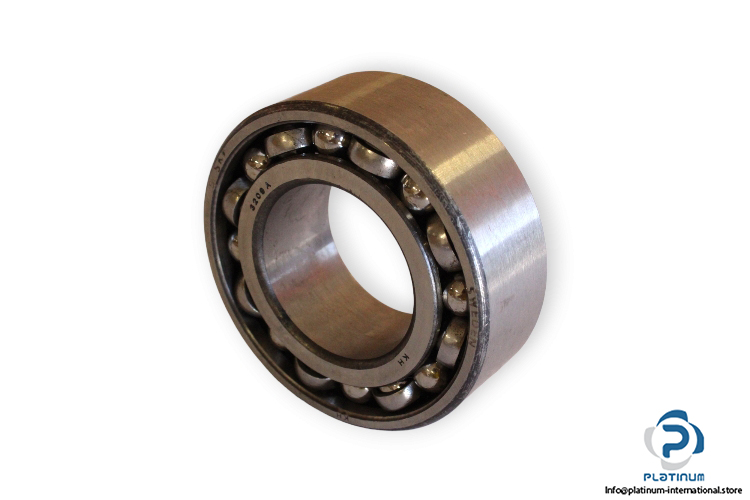

SKF 3209 A Double ROW Angular Contact Ball Bearing

Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3209A

Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 85 mm
Width B: 30.2 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic C_r: 52000 N
Static C_0r: 41500 N
Fatigue load limit: 1760 N
Limiting Speed: 7500 rpm
Reference speed: 7500 rpm
Cage: Sheet metal
