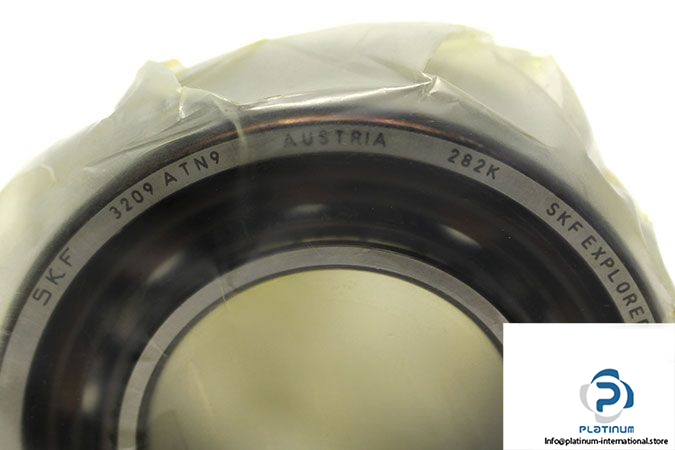

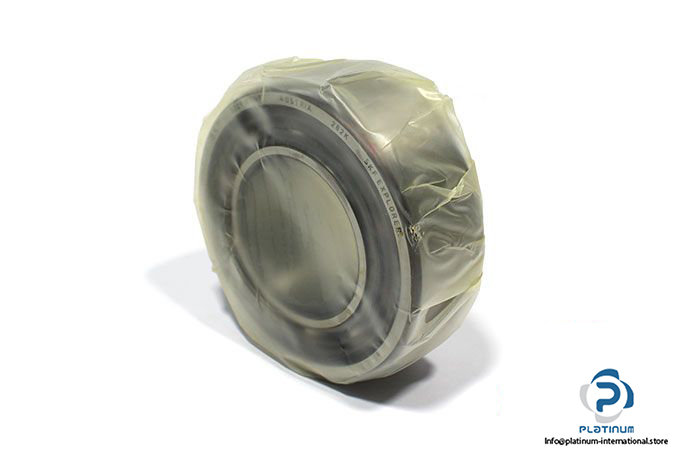

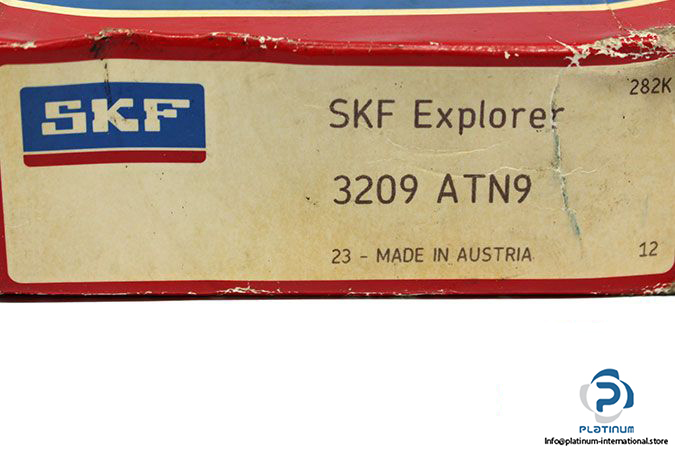

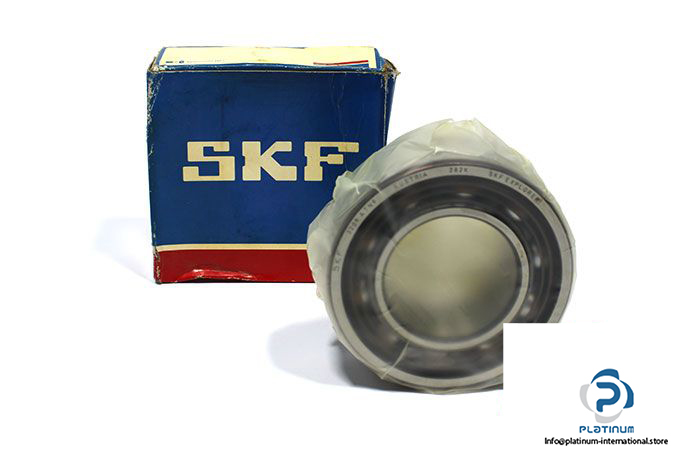

SKF 3209 ATN9 Double ROW Angular Contact Ball Bearing

Manufacturer: SKF

Type: Double Row Angular Contact Ball Bearing

Model: 3209ATN9

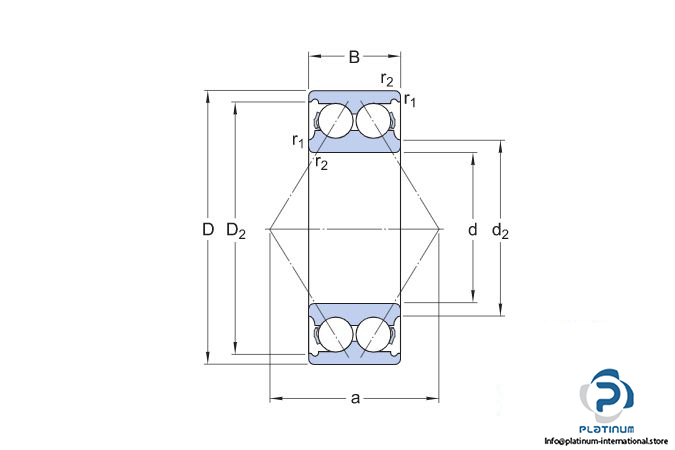

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 85 mm

Width B: 30.2 mm

Contact angle: 30 °

Basic load ratings:

Dynamic C: 52 kN

Static C₀: 41.5 kN

Fatigue load limit P_u: 1.76 kN

Reference speed: 7500 rpm

Limiting speed: 7500 rpm

Cage: TN9, Glass fibre reinforced PA66 cage
