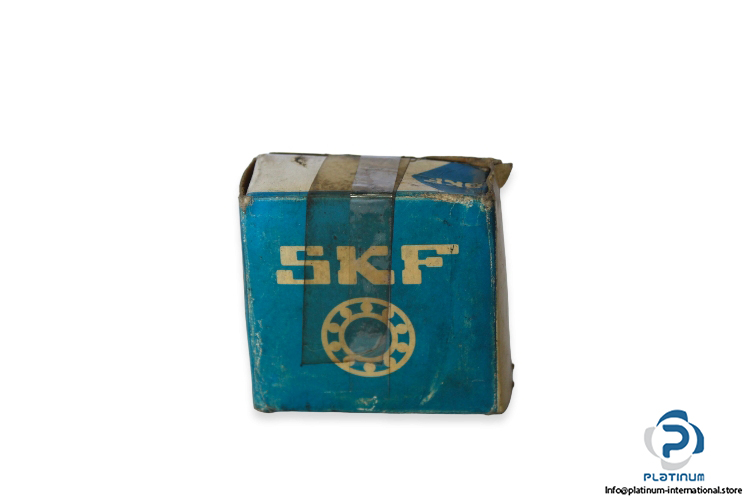

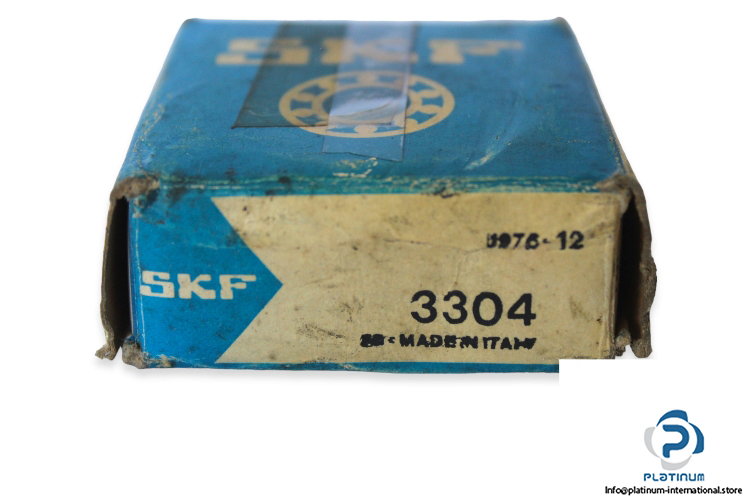

Name: SKF 3304 DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 999539
Availability: LimitedAvailability

Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3304

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 52 mm
Width B: 22.2 mm
Contact angle: 30 °
Basic load ratings, radial:
Dynamic C_r: 24500 N
Static C_0r: 15600 N
Limiting Speed: 13000 rpm
Reference speed: 13000 rpm

Spezifikation	Wert
Weight	0,24 kg
Condition	New
Type of Product	Double Row Angular Contact Ball Bearing
Shelf No.	240321

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	Angular Contact
Zustand	Neu
SKU	999539

Weight	0,24 kg
Condition	New
Type of Product	Double Row Angular Contact Ball Bearing
Shelf No.	240321

SKF 3304 Double ROW Angular Contact Ball Bearing
