SKF 3305 A Double ROW Angular Contact Ball Bearing
Gebraucht
Auf Lager1 EinheitVersandbereit
Doppelte Reihen-Winkelkontaktkugellager Das SKF 3305 A doppelte Reihen-Winkelkontaktkugellager bietet hohe radiale und axiale Tragfähigkeit mit einem Kontaktwinkel von 30° und präziser Leistung für industrielle Anwendungen.
25mm30-Degree3305aAngleAngularBallbearingboreCapacityContactDoubleHighHigh-SpeedIndustrialLoadPrecisionRowSKF
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

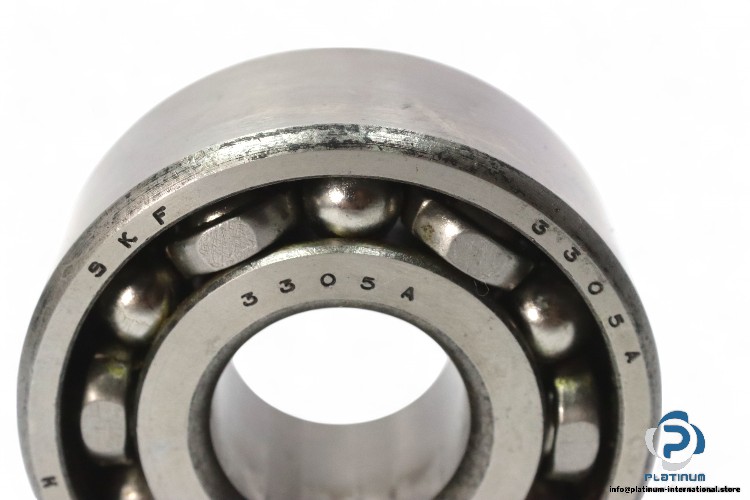

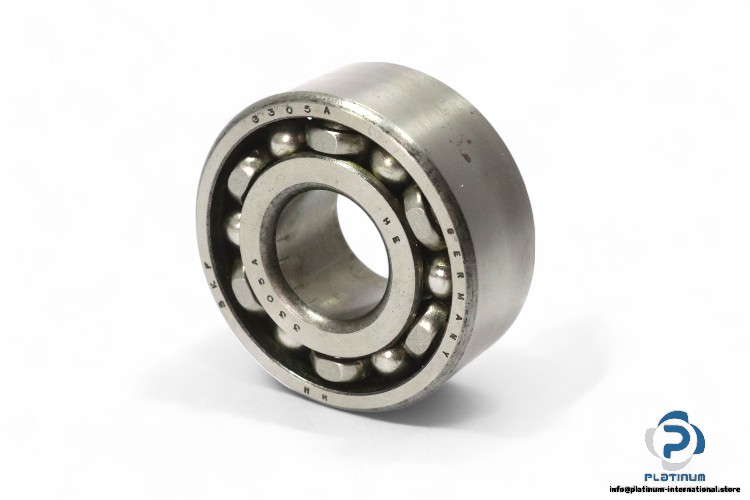

SKF 3305 A Double Row Angular Contact Ball Bearing
The SKF 3305 A Double Row Angular Contact Ball Bearing is designed for applications requiring high radial and axial load capacity. With a 30° contact angle and precision engineering, this bearing ensures stability, durability, and optimal performance in demanding industrial environments.
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3305 A
Basic Load Ratings:
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 25.4 mm |
| Contact Angle | 30° |
| Dynamic (Cr) | 32.5 kN |
| Static (C0r) | 22 kN |
| Fatigue Load Limit | 0.93 kN |
| Limiting Speed | 11,000 r/min |
| Reference Speed | 11,000 r/min |
