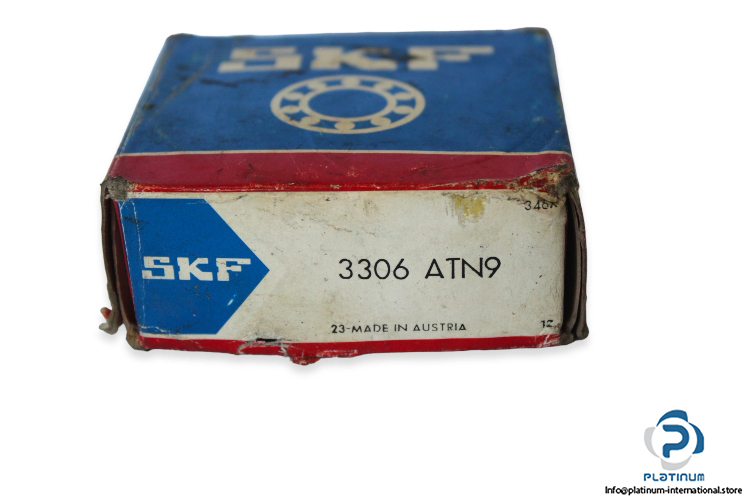

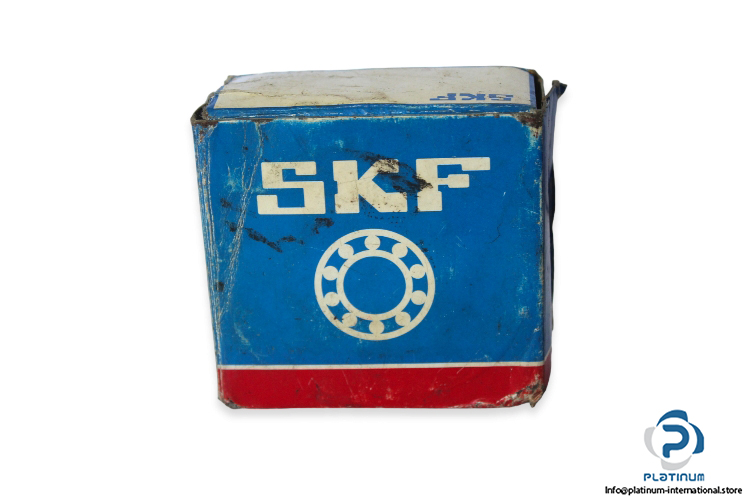

SKF 3306 ATN9 Double ROW Angular Contact Ball Bearing

Manufacturer: SKF

Type: Double Row Angular Contact Ball Bearing

Model: 3306 ATN9



Dimensions

Bore Diameter d: 30 mm

Outer diameter D: 72 mm

Width B: 30.2 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 42500 N

Static C_0r: 30000 N

Limiting Speed : 9000 rpm

Reference speed: 10000 rpm

Cage: Non-metallic
