SKF 51101 J9 Thrust Ball Bearing
Neu
Auf Lager15 EinheitenVersandbereit
SKF 51101 J9 einseitiges Schubkugellager mit 12 mm Bohrung, hoher Axiallastkapazität und gestanztem Stahlkäfig für Industrieanwendungen. Passende Lager sind in unserer Kategorie Lager erhältlich.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SKF 51101 J9 Thrust Ball Bearing

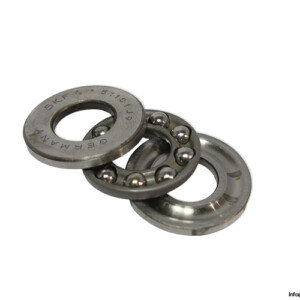

The SKF 51101 J9 is a single-direction thrust ball bearing designed to support axial loads in one direction while maintaining high operational accuracy and reliability.
Manufacturer: SKF
Type: Single Direction Thrust Ball Bearing
Model: 51101 J9
Explore compatible components in our Bearings category to complete your application setup.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 12 mm |
| Outer Diameter (D) | 26 mm |
| Height (T) | 9 mm |
| Dynamic Load Rating (C) | 10,400 N |
| Static Load Rating (C0) | 16,600 N |
| Fatigue Load Limit | 0.62 kN |
| Reference Speed | 9,000 rpm |
| Limiting Speed | 13,000 rpm |
| Cage | J9, Modified Stamped Steel Cage, Rolling Element Centered |
| Axial Load Capability | Single-Direction |
