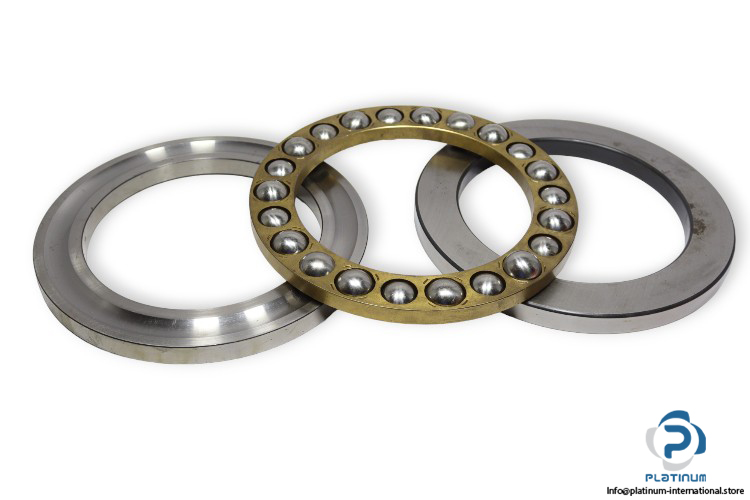

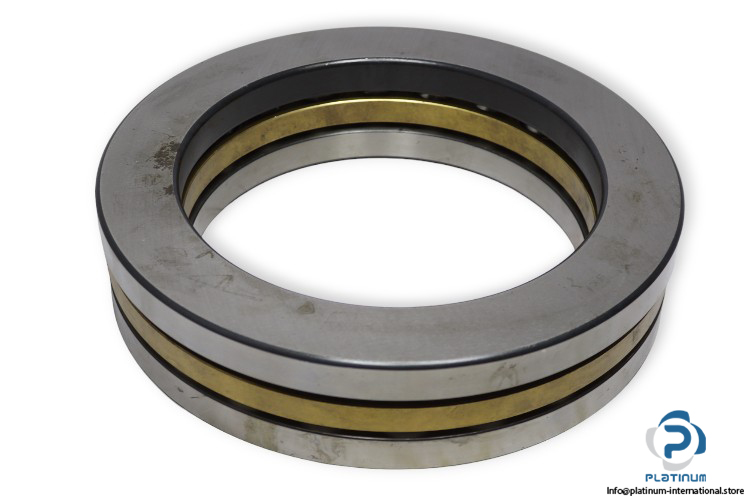

SKF 51248 M Thrust Ball Bearing

Manufacturer: SKF
Type: Single direction thrust ball bearing
Model: 51248 M

Dimensions:
Bore diameter d: 240 mm
Outer diameter D: 340 mm
Height H: 78 mm
Minimum chamfer dimension r _1,2: 2.1 mm
Basic load ratings:
Dynamic C: 449000 N
Static C₀: 1960 N
Fatigue load rating P_u: 42500 N
Reference speed: 800 rpm
Limiting speed: 1100 rpm
Cage: Machined metal
Housing washer type: Flat
