SKF 52412 F Double Direction Thrust Ball Bearing

Name: SKF 52412 F DOUBLE DIRECTION THRUST BALL BEARING
SKU: 1058160
Availability: LimitedAvailability

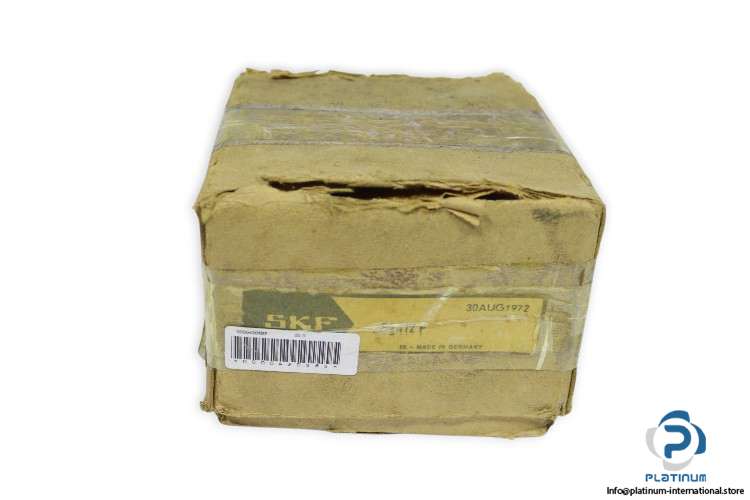

skf-52412-F-double-direction-thrust-ball-bearing-new-carton

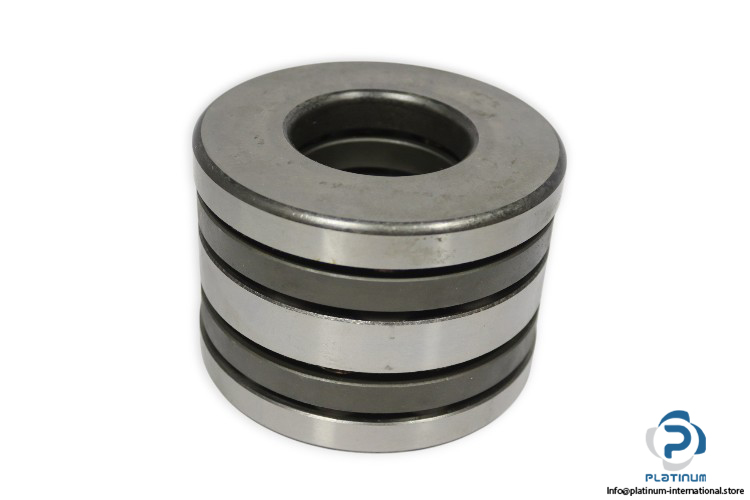

skf-52412-F-double-direction-thrust-ball-bearing-new-carton-1

skf-52412-F-double-direction-thrust-ball-bearing-new-carton-2

skf-52412-F-double-direction-thrust-ball-bearing-new-carton-3

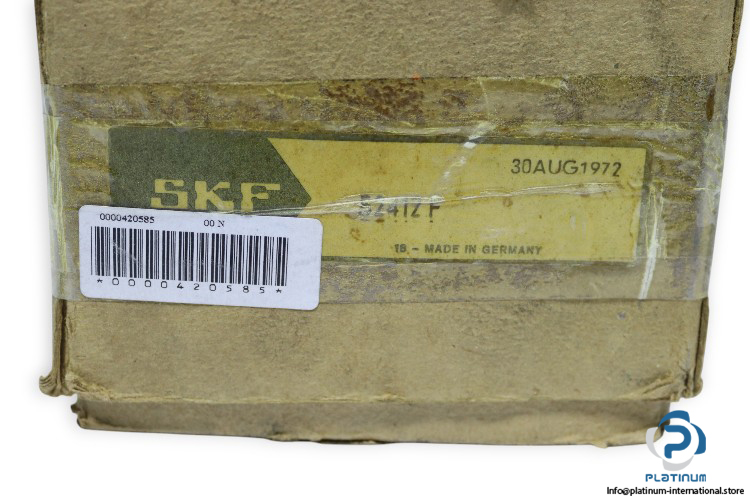

skf-52412-F-double-direction-thrust-ball-bearing-new-carton-4

Neu

Auf Lager1 EinheitVersandbereit

Doppelwirkendes Axialkugellager

SKU

1058160

Kategorie

Thrust (Axial) Bearings

Zustand

Neu

130 50 52412F Axial Ball bearing bore Cage Capacity diameter Direction Double fatigue High Industrial Limit Load Machined Metal mm Outer SKF Thrust

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

SKF 52412F Double Direction Thrust Ball Bearing

The SKF 52412F Double Direction Thrust Ball Bearing is designed to handle axial loads in both directions with high reliability. This bearing is ideal for applications that require high load capacity, stability, and precise axial load distribution.

Manufacturer: SKF

Type: DOUBLE DIRECTION THRUST BALL BEARING

Model: 52412F

This thrust ball bearing is designed to provide high axial load capacity, excellent durability, and reliable performance in various industrial applications requiring precise axial load handling.

Bore Diameter (d)	50 mm
Outer Diameter (D)	130 mm
Bearing Height	93 mm
Basic Dynamic Load Rating	199 kN
Basic Static Load Rating	430 kN
Reference Speed	1200 r/min
Limiting Speed	1700 r/min
Fatigue Load Limit	16 kN
Axial Load Capability	Double-direction
Cage	F, Machined metal
