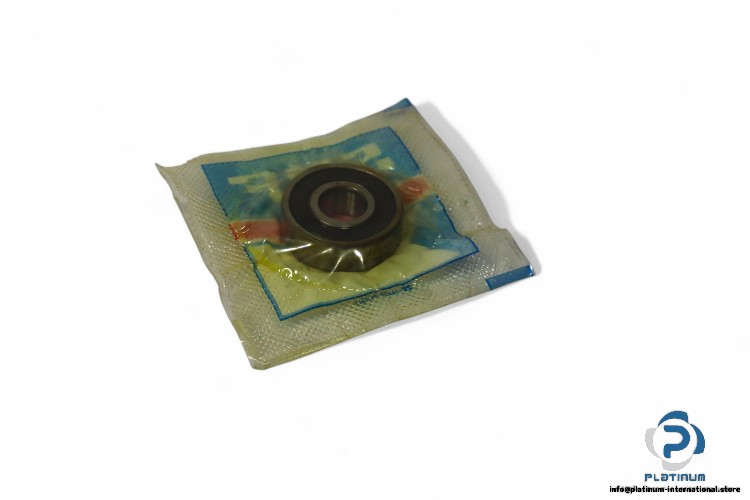

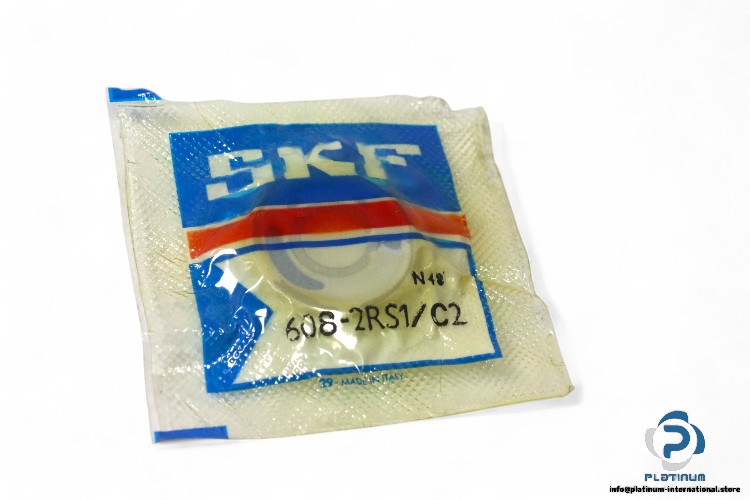

SKF 608-2RS1/C2 Deep Groove Ball Bearing

Deep Groove Ball Bearing (Model: 608-2RS1/C2)

Manufacturer: SKF

Type: Deep Groove Ball Bearing

Model: 608-2RS1/C2

The SKF Deep Groove Ball Bearing (Model: 608-2RS1/C2) is designed for high-speed and high-load applications with excellent sealing features for reliability. It features a cylindrical bore, radial internal clearance, and a contact seal on both sides for enhanced performance.

• Manufacturer: SKF
• Type: Deep Groove Ball Bearing
• Model: 608-2RS1/C2
• Bore diameter (d): 8 mm
• Outer diameter (D): 22 mm
• Width (B): 7 mm
• Dynamic Cr: 3.45 kN
• Static C0r: 1.37 kN
• Fatigue load limit: 0.057 kN
• Reference speed: 75,000 r/min
• Limiting speed: 48,000 r/min
• Bore type: Cylindrical
• Radial internal clearance: C2, less than normal
• Sealing: 2RS1, contact seal on both sides
