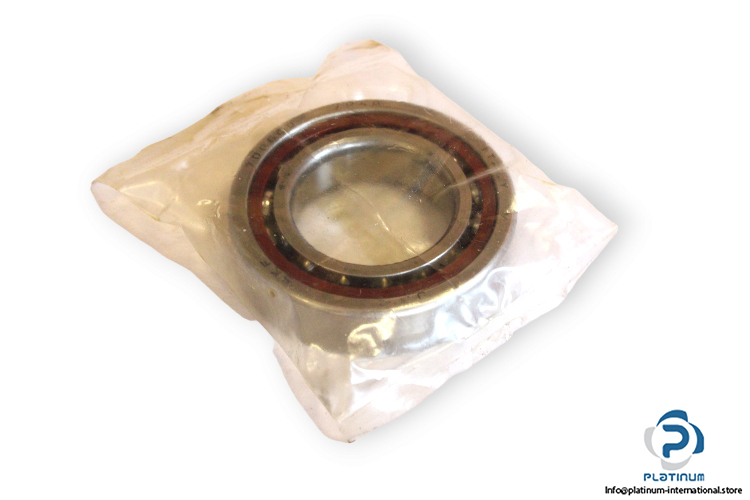

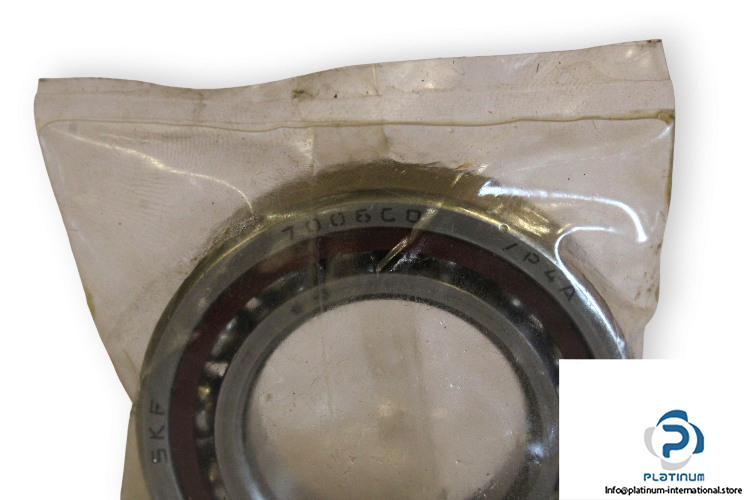

SKF 7006 CD/P4A Angular Contact Ball Bearing

Manufacturer: SKF
Type: Angular Contact Ball Bearing
Model: 7006CD/P4A

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 55 mm
Width B: 13 mm
Contact angle α: 15 °
Basic load ratings:
Dynamic C: 14.3 kN
Static C₀: 8 kN
Fatigue load limit P_u: 0.34 Kn
Attainable speed for grease lubrication: 32000 rpm
Attainable speed for oil-air lubrication : 48000 rpm
Cage: Cotton Fabric Reinforced Phenolic Resin Cage
Tolerance class: P4A
