SKF 7007 CD/P4A Angular Contact Ball Bearing
Neu
Auf Lager1 EinheitVersandbereit
Schrägkugellager SKF 7007 CD/P4A einreihiges Schrägkugellager mit 15° Kontaktwinkel, hochkapazitivem Design, P4A Toleranzklasse und Hochgeschwindigkeitsleistung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

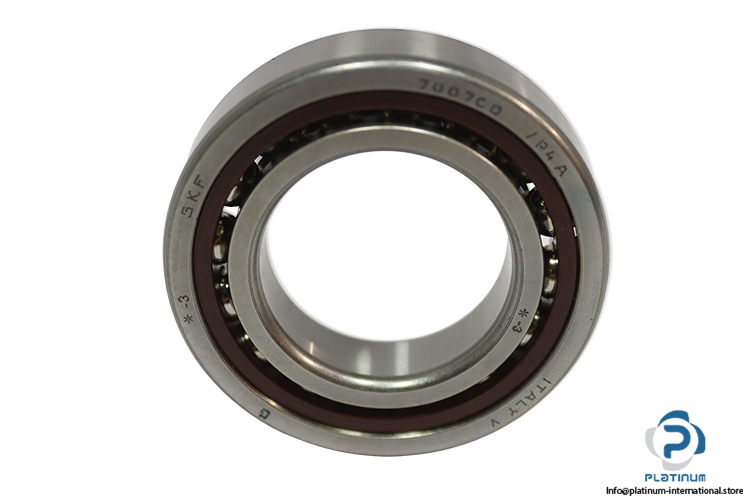

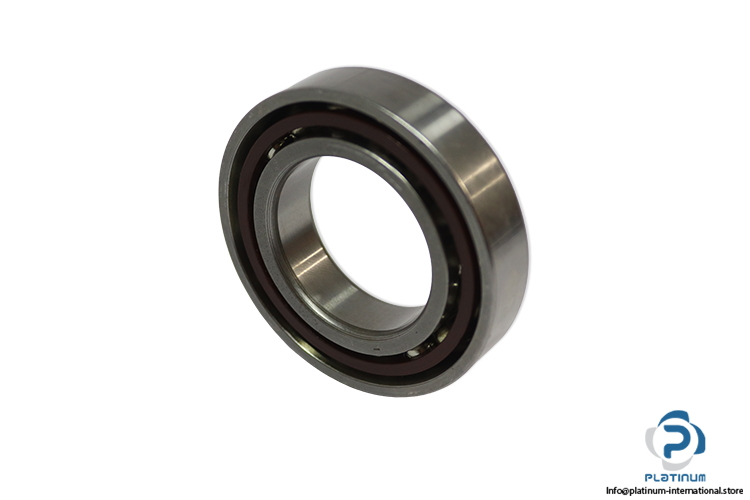

SKF 7007 CD/P4A Angular Contact Ball Bearing
The SKF 7007 CD/P4A is a high-precision single row angular contact ball bearing designed for applications requiring high speed capability, accuracy, and reliable load performance.
Manufacturer: SKF
Type: Single Row Angular Contact Ball Bearing
Model: 7007 CD/P4A
Dimensions
Bore Diameter (d): 35 mm
Outer Diameter (D): 62 mm
Width (B): 14 mm
| Contact Angle | 15° |
| Basic Dynamic Load Rating | 15.6 kN |
| Basic Static Load Rating | 9.5 kN |
| Attainable Speed (Grease Lubrication) | 24,000 r/min |
| Attainable Speed (Oil-Air Lubrication) | 36,000 r/min |
| Design | High-Capacity D |
| Universal Matching Bearing | No |
| Matched Arrangement | No |
| Matched Condition (Axial Clearance / Preload) | Not Applicable |
| Tolerance Class | P4A |
