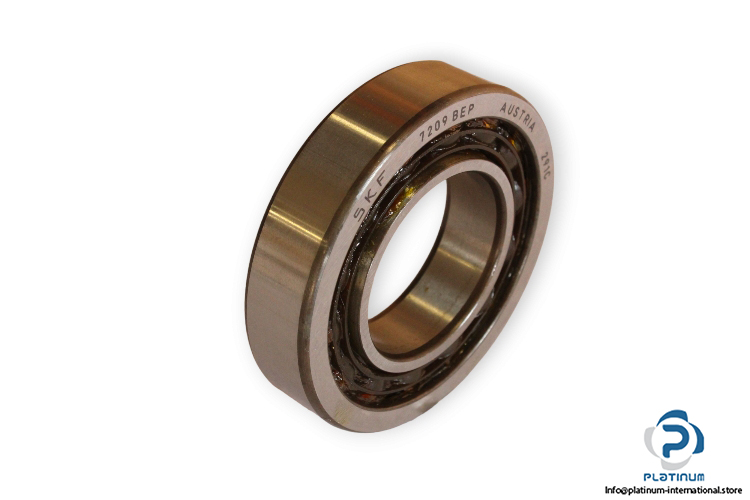

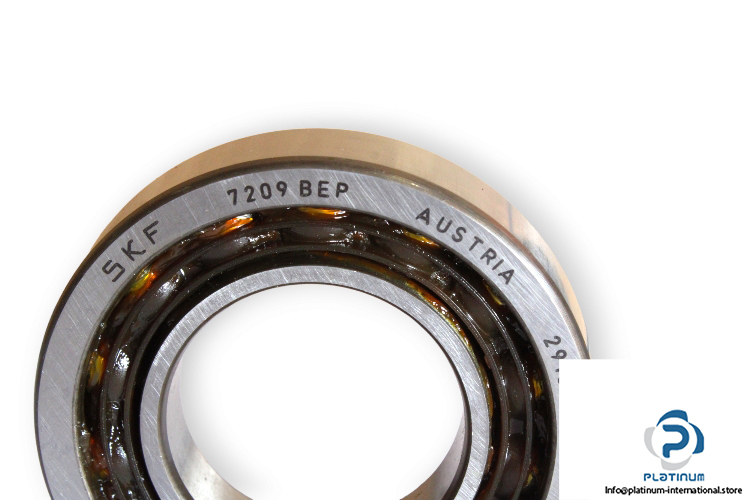

SKF 7209 BEP Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular Contact Ball Bearing

Model: 7209BEP

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 85 mm

Width B: 19 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 35800 N

Static C_0r: 26000 N

Limiting speed: 9000 rpm

Reference speed: 9500 rpm

Cage: Glass fibre reinforced PA66 cage, rolling element centred
