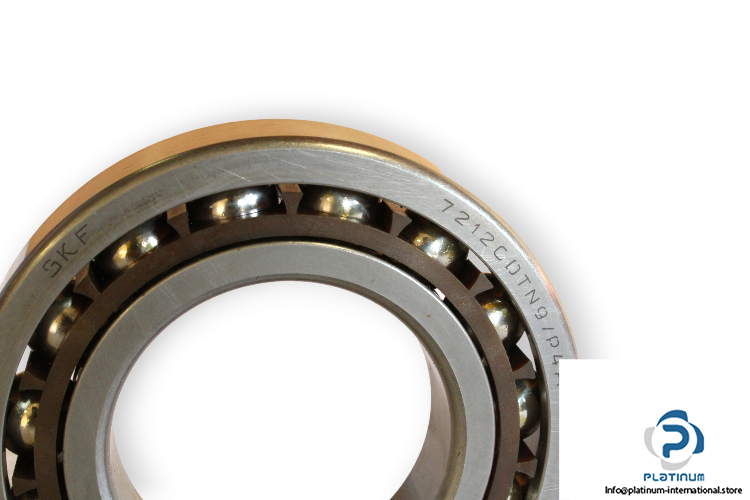

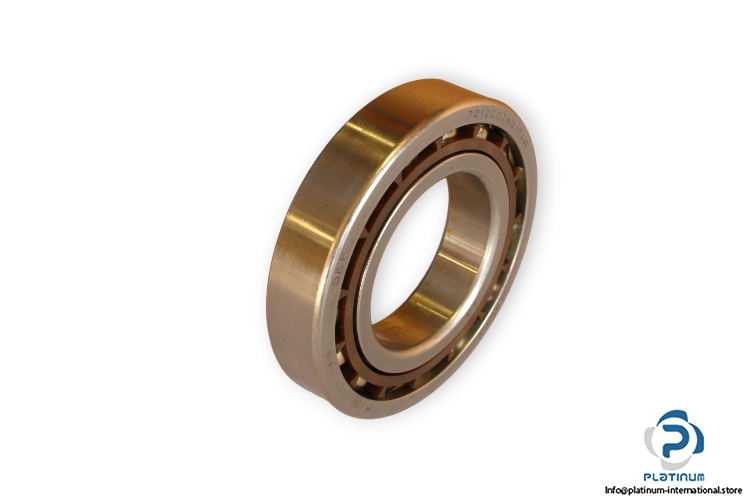

SKF 7212 CDTN9/P4A Angular Contact Ball Bearing

Manufacturer: SKF

Type: Super-precision, high-capacity, single row angular contact ball bearing with 15° contact angle

Model: 7212CDTN9/P4A

Dimensions

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 22 mm

Contact angle α: 15°

Basic load ratings:

Dynamic C_r: 57200 N

Static C_0r: 46500 N

Attainable speed for grease lubrication: 13000 rpm

Attainable speed for oil-air lubrication: 20000 rpm

Tolerance class: P4A

Design: High-capacity D
