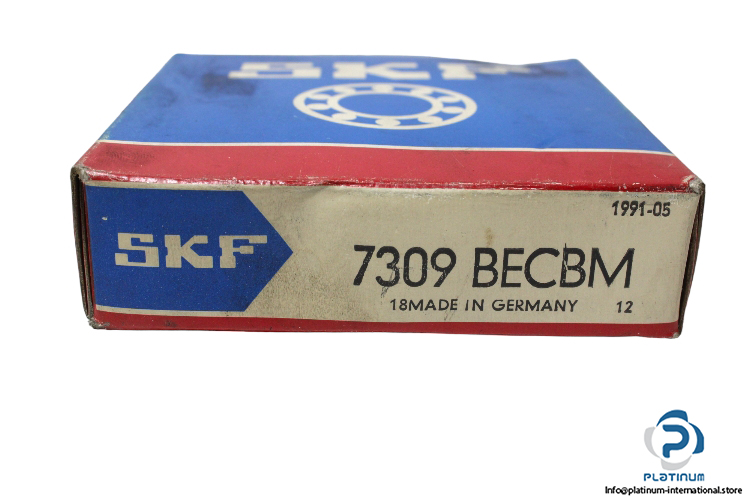

SKF 7309 Becbm Angular Contact Ball Bearing

Manufacturer: SKF

Type: Single row angular contact ball bearing

Model: 7309BECBM



Dimensions:

Bore Diameter d: 45 mm

Outer diameter D: 100 mm

Width: 25 mm

Contact angle: 40 °

Basic dynamic load rating: 61 kN

Basic static load rating: 40.5 kN

Fatigue load limit: 1.73 kN

Limiting speed: 11000 RPM

Reference speed: 8500 RPM

External design: CB; Bearing for universal matching. Two bearings arranged back-to-back or face-to-face have Normal axial internal clearance.

Cage material: Brass
