SKF 7314 Becbm Angular Contact Ball Bearing
Neu
Auf Lager2 EinheitenVersandbereit
Winkelkontakt-Kugellager SKF 7314BECBM einreihiges Winkelkontakt-Kugellager mit 40° Kontaktwinkel, gedrehtem Messingkäfig und hoher Tragfähigkeit für Industrieanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

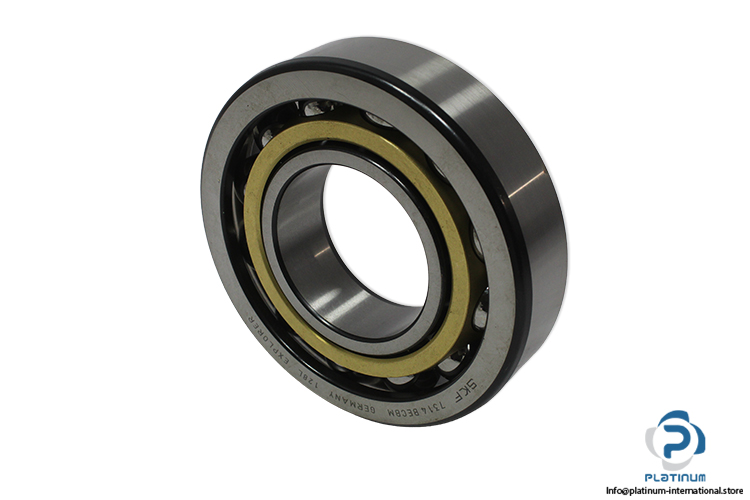

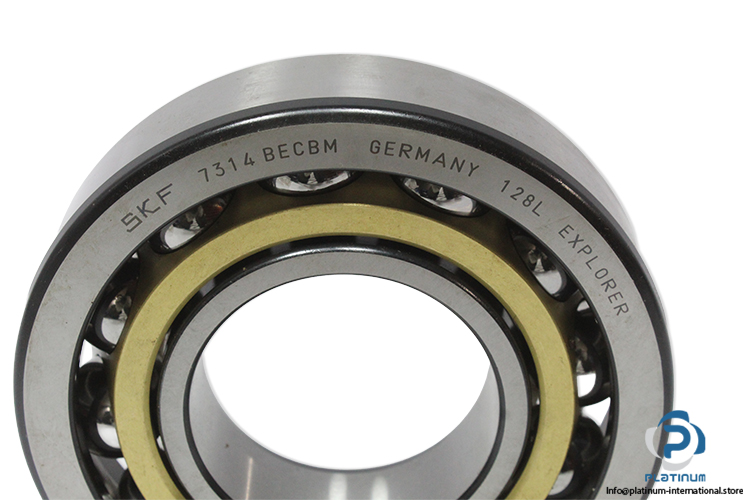

SKF 7314BECBM Single Row Angular Contact Ball Bearing
A high-precision single row angular contact ball bearing manufactured by SKF, designed to support combined radial and axial loads while providing high stiffness and reliable performance in demanding industrial applications. With a 40-degree contact angle and machined brass cage, this bearing is suitable for high-speed operation and accurate shaft guidance.
Manufacturer: SKF
Type: Single Row Angular Contact Ball Bearing
Model: 7314BECBM
| Bore Diameter (d) | 70 mm |
| Outer Diameter (D) | 150 mm |
| Width (B) | 35 mm |
| Contact Angle | 40 degrees |
| Basic Dynamic Load Rating (Cr) | 127 kN |
| Basic Static Load Rating (C0r) | 98 kN |
| Fatigue Load Limit | 3.9 kN |
| Limiting Speed | 7500 rpm |
| Reference Speed | 5600 rpm |
| Cage | Machined Brass |
| Matched Arrangement | No |
| Universal Matching Bearing | Yes |
| Axial Internal Clearance | Not Applicable |
| Matched Condition (Axial Clearance / Preload) | Axial Clearance CB |
| Tolerance Class | Class 6 (P6) |
