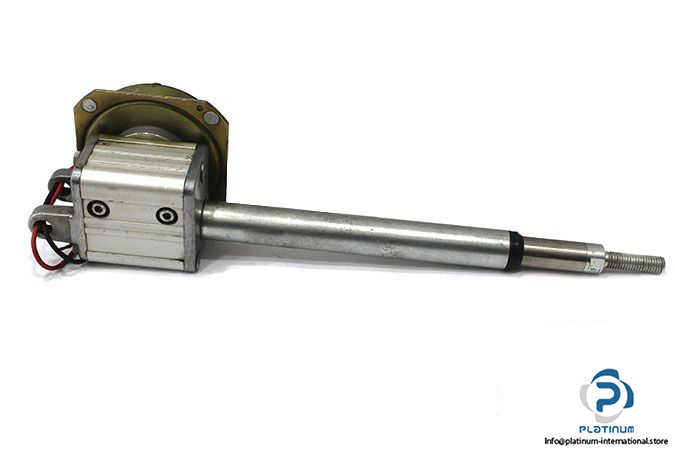

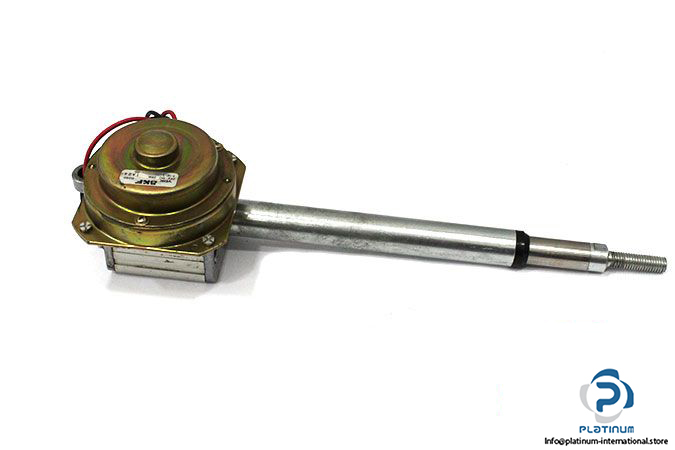

SKF CAR 22 Linear Actuator

Manufacturer: SKF EWELLIX

Type: Linear Actuator

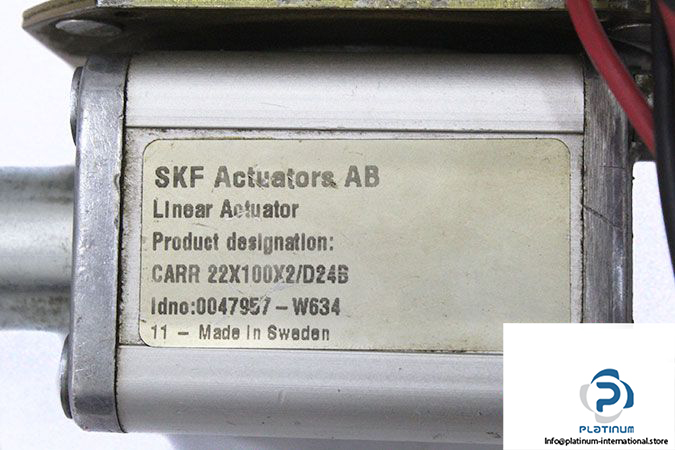

Designation: CARR22X100X2/D24B

Id No.: 0047957 – W634

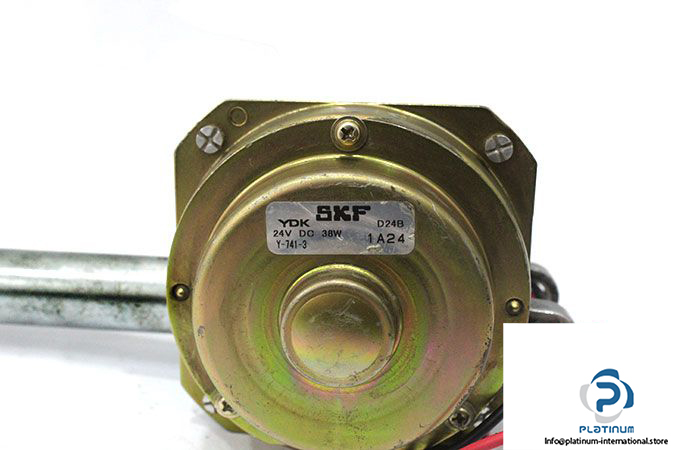

Attached motor: D24B ; flat design, right assembly

Voltage: 24 V DC

Power consumption: 120 W

Current: 5 A

Stroke: 100 mm

Motor assembly: Right

Load / full load speed: 1000 N/30 – 20 mm/s

Rated push load: 1000 N … 1500 N

Protection Class: IP44

Ambient Temp.: -20 °C – 70 °C

Weight: 1.35 kg
