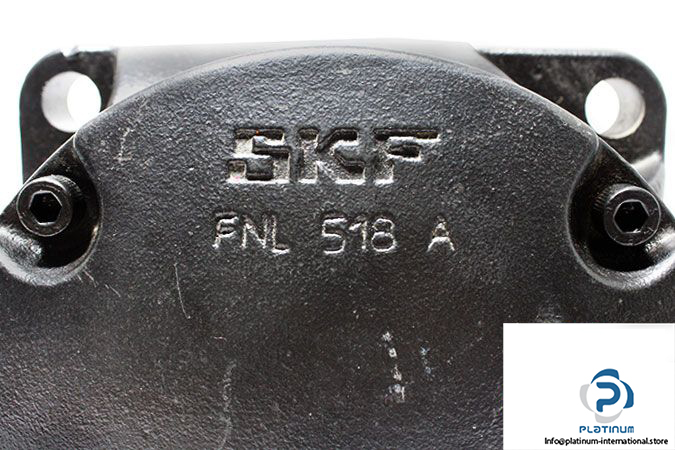

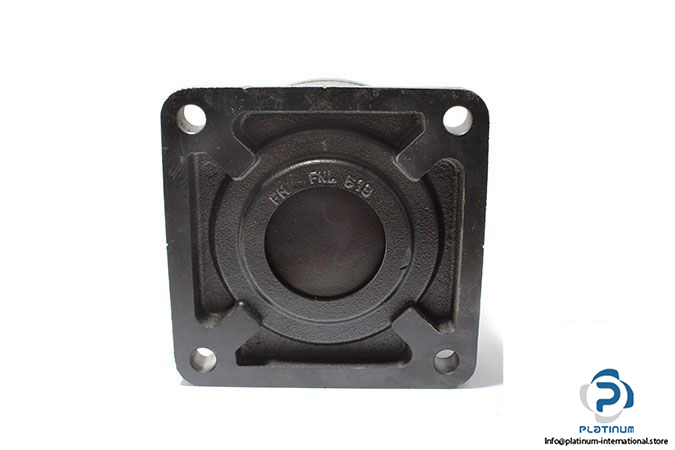

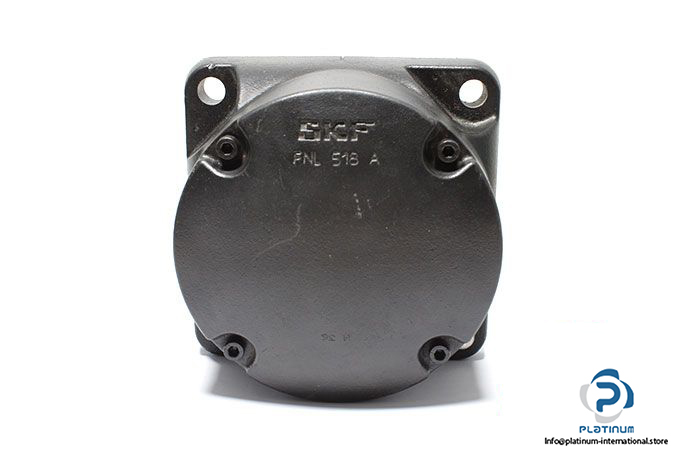

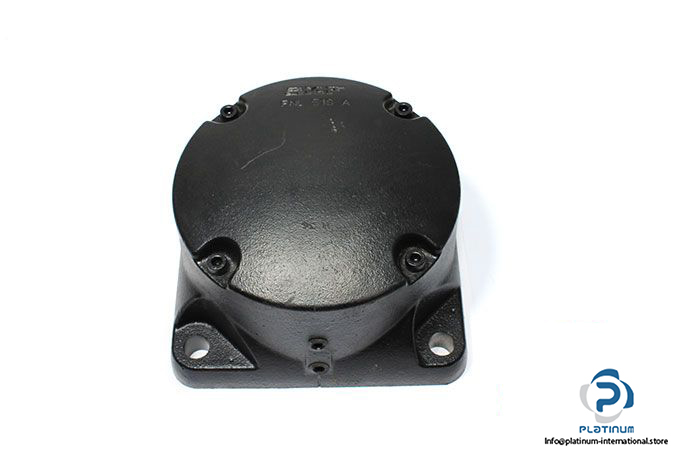

SKF FNL 518 A Flanged Housing Unit

Manufacturer: SKF

Type: Flanged housings – FNL series

Model: FNL518A

Mounting: Four-Bolt Flange

Breaking Loads

P1: 170 kN

P2: 170 kN

P3: 490 kN

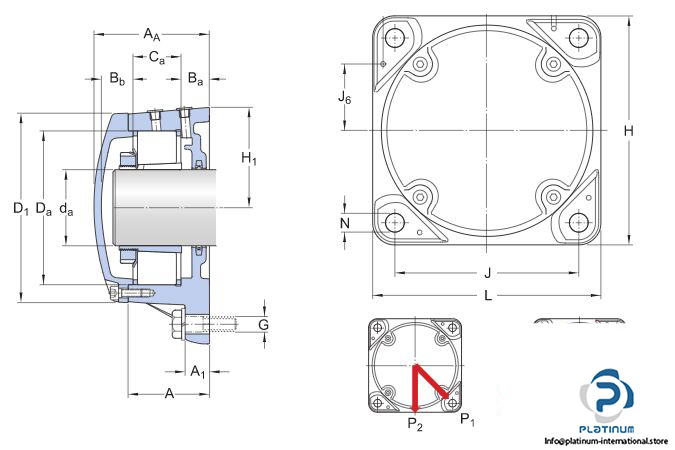

Dimensions

Bore Diameter ( d_a ): 80 mm

Overall length ( L ): 210 mm

Overall Width ( A_A ): 121 mm

Overall Height (H) : 210 mm

Distance Between Attachment Bolts (J): 170 mm

Appropriate Attachment Bolt, Size: 16 mm

Weight: 12 kg
