SKF FY 509 M Square Flanged Ball Bearing Unit
Neu
Auf Lager1 EinheitVersandbereit
33,33$
SKF FY 509 M quadratisches Flansch-Kugellagergehäuse mit ECY 209 Enddeckel, 85 mm Sitzdurchmesser, Graugussgehäuse und Vier-Schrauben-Montagebasis für den industriellen Einsatz.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

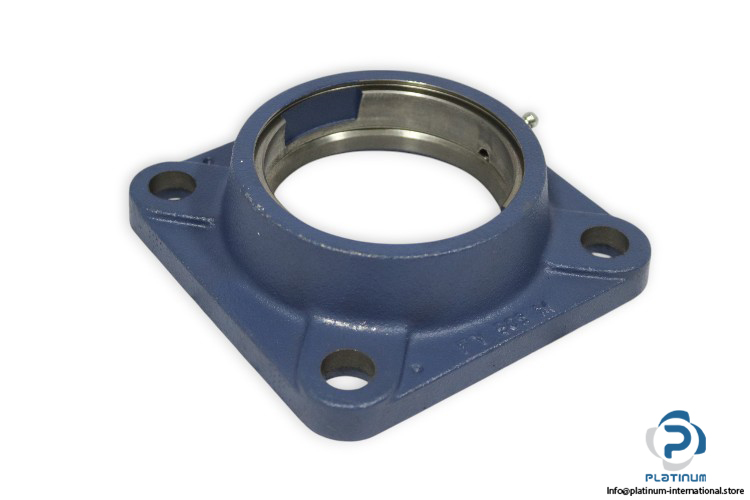

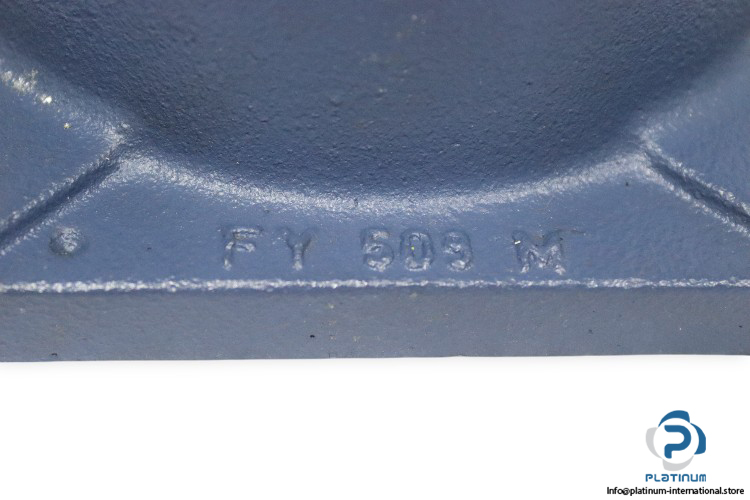

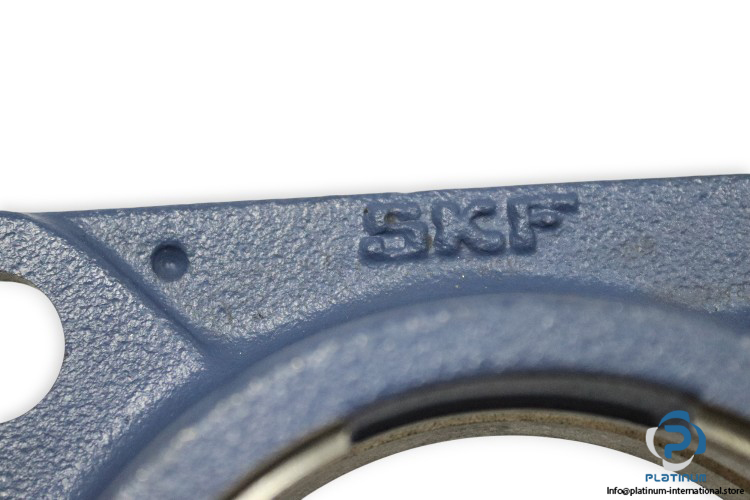

SKF Square Flanged Ball Bearing Unit FY 509 M with End Cover ECY 209
The SKF FY 509 M is a high-quality square flanged ball bearing unit designed for reliable performance in demanding applications. This unit features robust cast iron housing, ensuring durability and strength. Its four-bolt base design and precise dimensions make it ideal for a wide range of industrial applications.
🔧 Technical Specifications:
- Manufacturer: SKF
- Type: Square Flanged Ball Bearing Unit
- Model: FY 509 M
- End Cover: ECY 209
📠Dimensions:
- Spherical Seating Diameter: 85 mm
- Housing Overall Width: 39 mm
- Distance of Attachment Bolts (J): 105 mm
- Overall Length: 137 mm
- Diameter of Attachment Bolt Hole (N): 16 mm
- Flange Width: 14 mm
š™ï¸ Material and Mounting:
- Material (Housing): Cast Iron
- Mounting: Four-Bolt Base
This SKF flanged bearing unit offers precise engineering, reliable operation, and a durable construction suited for various industrial environments.
