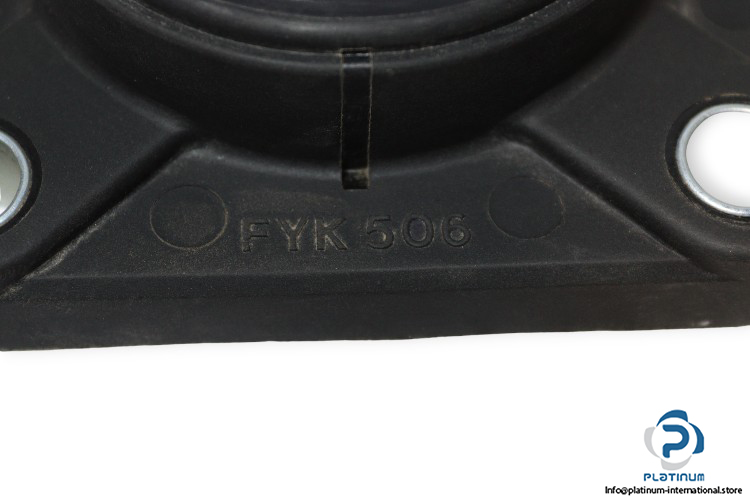

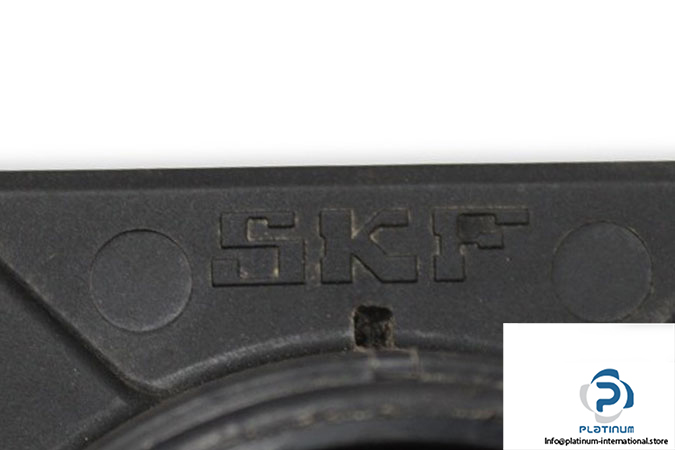

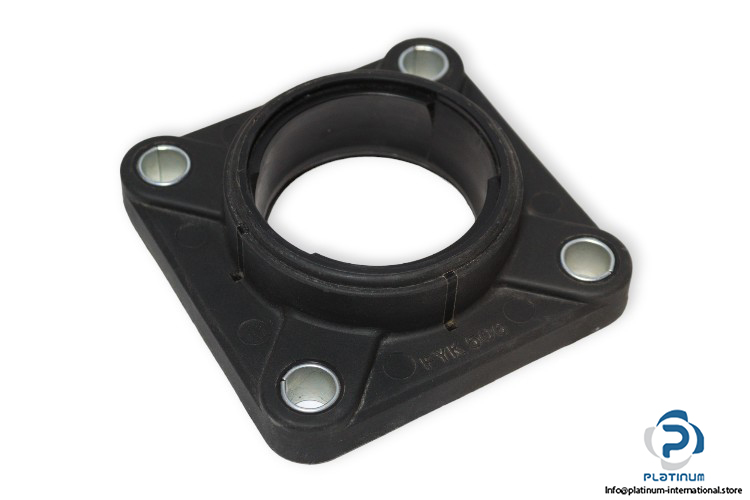

SKF FYK 506 Plastic Square Flanged Housing Unit

Name: SKF FYK 506 PLASTIC SQUARE FLANGED HOUSING UNIT
SKU: 1030201
Availability: LimitedAvailability

skf-FYK-506-plastic-Square-flanged-housing-unit-(new)

skf-FYK-506-plastic-Square-flanged-housing-unit-(new)-1

skf-FYK-506-plastic-Square-flanged-housing-unit-(new)-2

skf-FYK-506-plastic-Square-flanged-housing-unit-(new)-3

Neu

Auf Lager2 EinheitenVersandbereit

Typ: Kunststoff quadratische Flanschgehäuseeinheit

SKU

1030201

Kategorie

Plummer Block Housing Units

Zustand

Neu

bearing Block Flange Housing Plastic Square

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: SKF
Type: Plastic Square Flanged Housing Unit
Model: FYK506

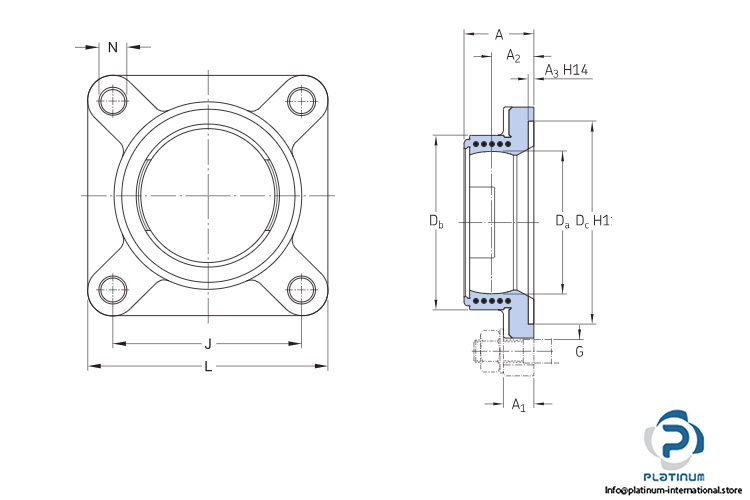

Dimensions
Diameter of spherical seat Da: 62 mm
Top external diameter Db: 78 mm
Centring diameter: 93.7 mm
Overall width A: 33 mm
Distance between attachment bolts J: 82.5 mm
Overall length L: 108 mm
Width of attachment bolt hole N: 12.3 mm
Mounting: Square flanged
Housing Color: Black
Material, housing: Plastic
