SKF H 220 Adapter Sleeve
Neu
Auf Lager1 EinheitVersandbereit
ADAPTERHÜLSE SKF H 220 Adapterhülse für 90 mm Wellen mit M100x2 Gewinde und 1:12 Konus, ideal für die Montage von Kegelbuchsenlagern mit hoher Präzision und Stabilität.
11290accessoriesAdapterbearingboreH220KM20LocknutM100x2MB20mmMountingshaftSKFsleeveTapertaperedThreadWasher
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SKF H 220 ADAPTER SLEEVE

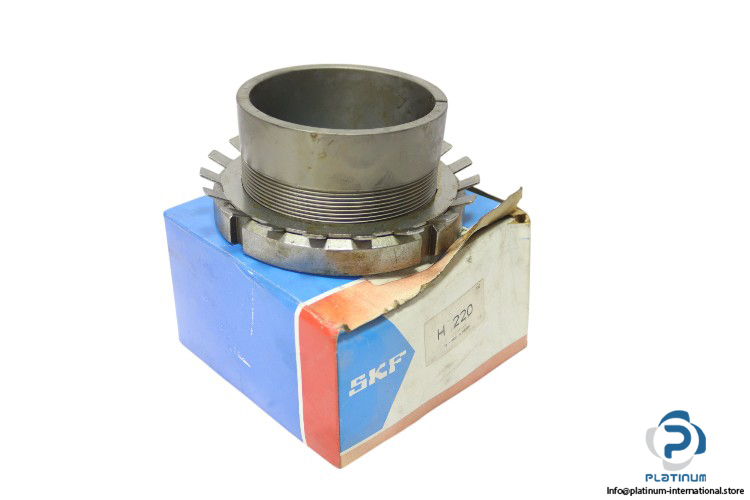

The SKF H 220 adapter sleeve is engineered for secure mounting of bearings with tapered bores onto cylindrical shafts. Featuring a 1:12 external taper, robust threading, and integrated locking components, it ensures precise alignment and reliable performance in demanding mechanical systems.
Manufacturer: SKF
Type: Adapter Sleeve
Model: H 220
| Bore Diameter (d1) | 90 mm |
| Outside Diameter Small Taper (d) | 100 mm |
| Outer Diameter Lock Nut | 130 mm |
| Width | 58 mm |
| Width Lock Nut Including Lock Washer (B4) | 20 mm |
| Thread (G) | M100x2 |
| External Taper | 1:12 |
| Locknut | KM20 |
| Lock Washer | MB20 |
