SKF H 316 Adapter Sleeve

Manufacturer: SKF
Type: Adapter sleeve H
Model: H316

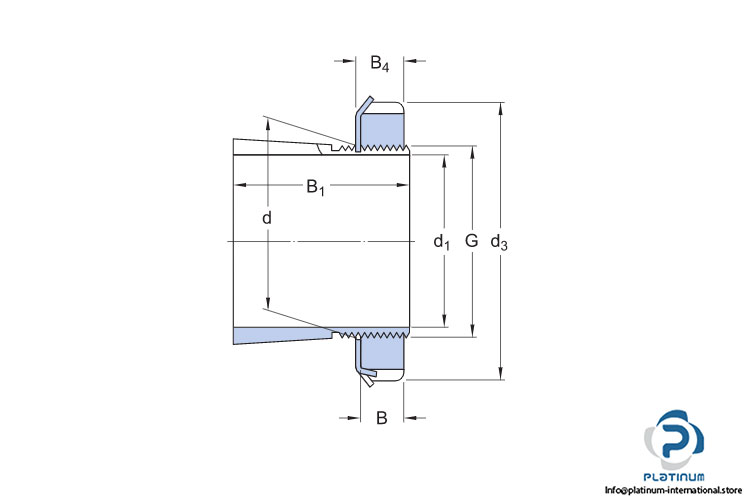

Dimensions:
Bore Diameter d₁: 70 mm
Outside diameter small taper d: 80 mm
Outer diameter lock nut d₃: 105 mm
Sleeve length B₁: 59 mm
Width lock nut including lock washer B₄: 17 mm
Thread G: M80x2
External taper: 1:12
Locknut: KM16
Lock washer: MB16
