SKF HMV 96 Hydraulic NUT
3 000,00$
Hydraulische Mutter SKF hydraulische Mutter, entwickelt für die einfache Montage und Demontage von Lagern durch Anwendung hoher Antriebskräfte mit Präzision und Effizienz.
SKF HMV 96 Hydraulic Nut
The SKF HMV 96 hydraulic nut is designed to simplify the mounting and dismounting of bearings by enabling the controlled application of high drive-up forces. This hydraulic tool allows accurate axial movement during bearing installation, making it especially suitable for large bearings and heavy industrial assemblies.
Manufacturer: SKF
Type: Hydraulic Nut
Model: HMV 96
Used For: Mounting Or Dismounting Of Bearings
Application:
Using an SKF hydraulic nut facilitates easy and quick application of the high drive-up forces required for mounting bearings.

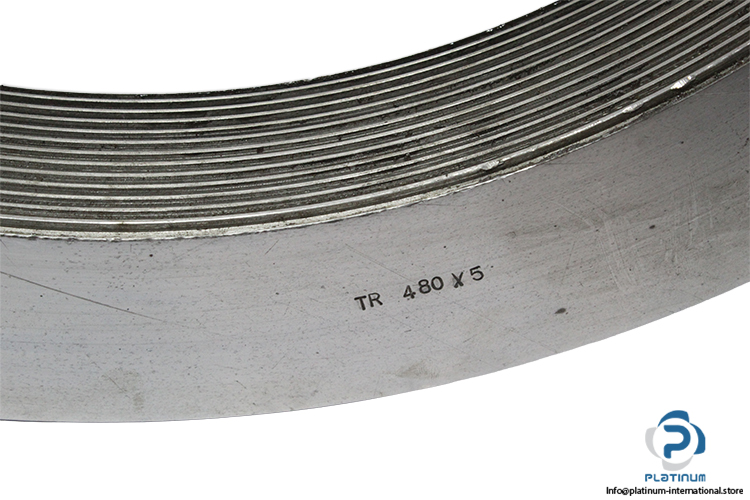

| Threaded | Tr480x5 |
| Thread Form | ISO 2901-1977 Tolerance Class 7H |
| Maximum Piston Displacement | 19 mm |
| Outer Diameter | 612 mm |
| Piston Area | 48 600 mm² |
| Piston Inner Diameter | 482 mm |
| Piston Outer Diameter | 587 mm |
| Piston Width | 12 mm |
| Width | 65 mm |
| Maximum Pressure | 400 bar |
