SKF K 40X47X18 Needle Roller Inner Ring

Name: SKF K 40X47X18 NEEDLE ROLLER INNER RING
SKU: 1090311
Availability: LimitedAvailability

skf-K-40-47-18-needle-roller-inner-ring-(new)-(carton)

skf-K-40-47-18-needle-roller-inner-ring-(new)-(carton)-1

Neu

Auf Lager7 EinheitenVersandbereit

Nadelrollen- und Käfigbaugruppe SKF K 40X47X18 einreihige Nadelrollen- und Käfigbaugruppe mit hoher Tragfähigkeit, kompakte Abmessungen und Stahlblechkasten für industrielle Anwendungen. Ideal für Getriebe, Antriebe und platzsparende mechanische Konstruktionen.

SKU

1090311

Kategorie

Needle Bearings

Zustand

Neu

40X47X18 assembly bearing Cage Compact Gearbox High Industrial K Load Needle Roller Row Single SKF

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

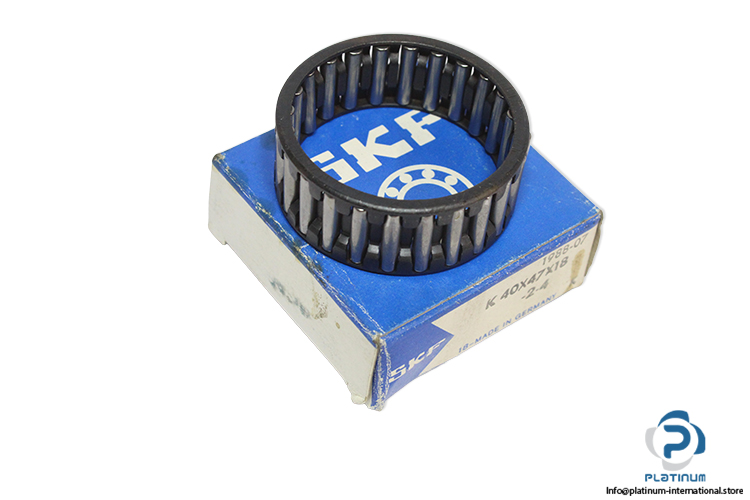

SKF K 40X47X18 Needle Roller and Cage Assembly

The SKF K 40X47X18 single row needle roller and cage assembly is designed to support high radial loads while maintaining compact design and high rotational performance.

Manufacturer: SKF

Type: Single Row Needle Roller and Cage Assembly

Model: K 40X47X18

Recommended for compact transmissions, gearboxes, and industrial drive assemblies requiring high load capacity.

Please contact us via Ask for assistance with any inquiries.

Bore Diameter of Needle Roller Complement	40 mm
Outside Diameter	47 mm
Outside Diameter of Needle Roller Complement	47 mm
Width	18 mm
Basic Dynamic Load Rating	28.6 kN
Basic Static Load Rating	50 kN
Reference Speed	10000 r/min
Limiting Speed	11000 r/min
Cage	Sheet Steel
