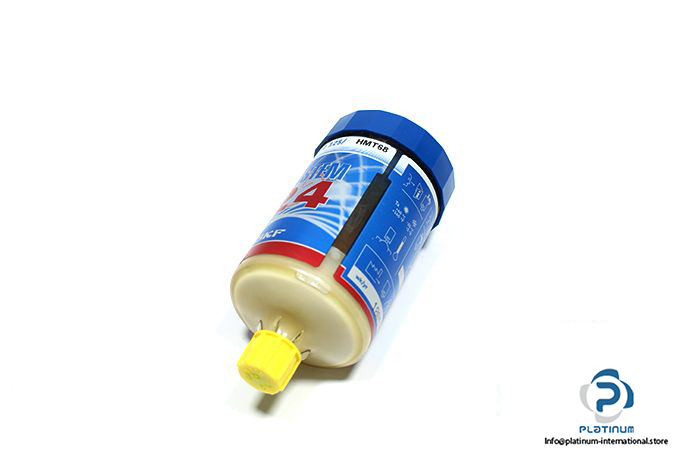

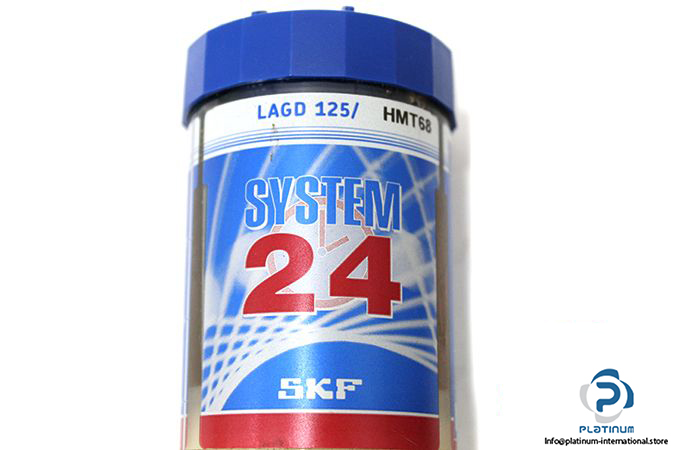

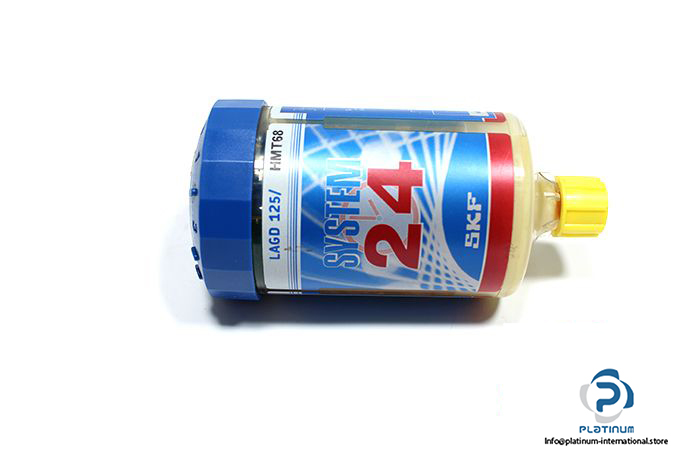

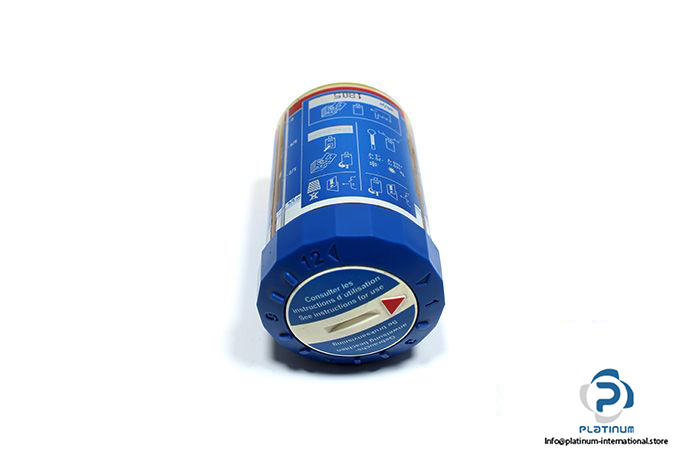

SKF Lagd 125/HMT68 GAS Driven Single Point Automatic Lubricator

Manufacturer: SKF

Type: Gas Driven Single Point Automatic Lubricator

Model: LAGD 125/HMT68

Typical Applications:

• Applications in restrictive and hazardous locations

• Bearing housing lubrication
• Electric motors
• Fans and pumps
• Conveyors
• Cranes
• Chains (oil)
• Elevators and escalators (oil)

  Grease capacity: 125 ml

  Nominal emptying time: Adjustable; 1–12 months

Ambient temperature range: –20 ….. +60 °C

Maximum operating pressure: 5 bar

Connection thread: G ¼

Maximum feed line length with:

Grease: 300 mm

Oil: 1 500 mm

Storage life of lubricator: 2 years

Protection class:  IP 68

Weight: 0.2 kg
