SKF MFE5-BW7-S139+MGP Gear Pump Unit
Neu
Auf Lager1 EinheitVersandbereit
999,99$
Zahnradpumpeneinheit SKF MFE5-BW7-S139+MGP für zentralisierte Einkreis-Schmiersysteme mit Drehstrommotor, Durchflussrate 0,5/0,6 l/min, 27 bar Druck und 6 L Behälterkapazität.
276L800barCentralizedCodeGearlubricationMFE5-BW7-S139+MGPMotorizedpumpReservoirSingle-LineSKFSystemUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

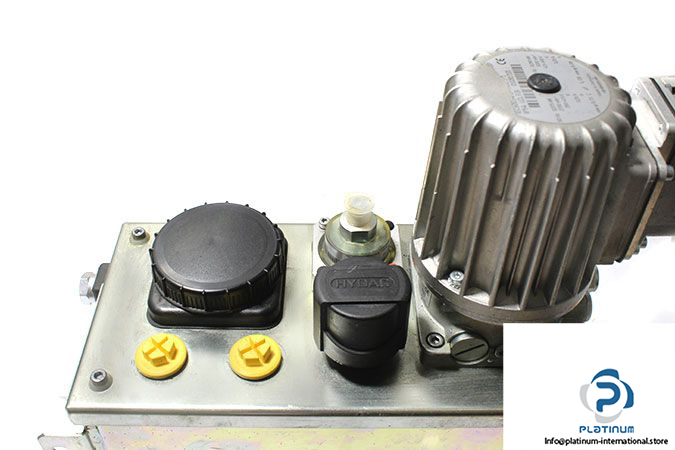

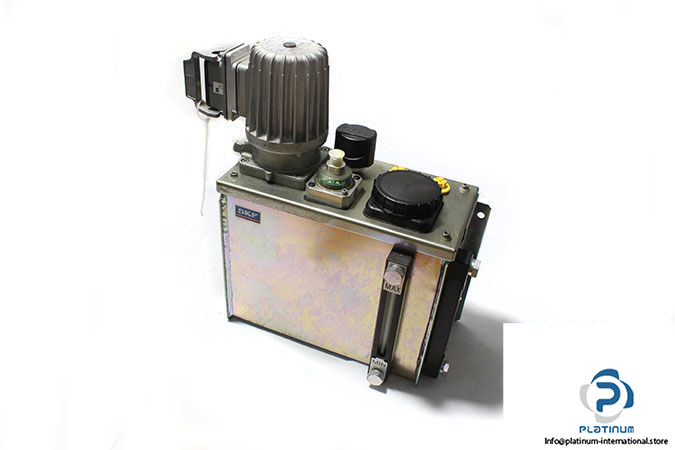

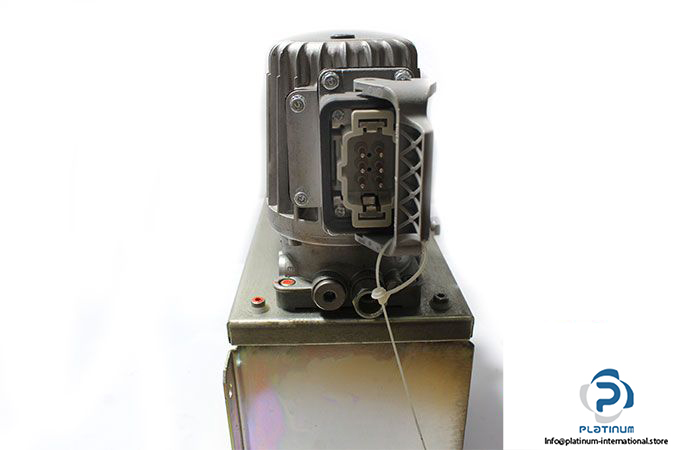

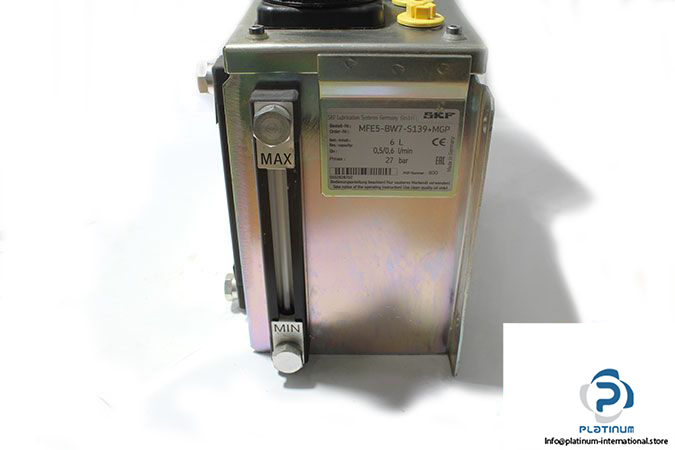

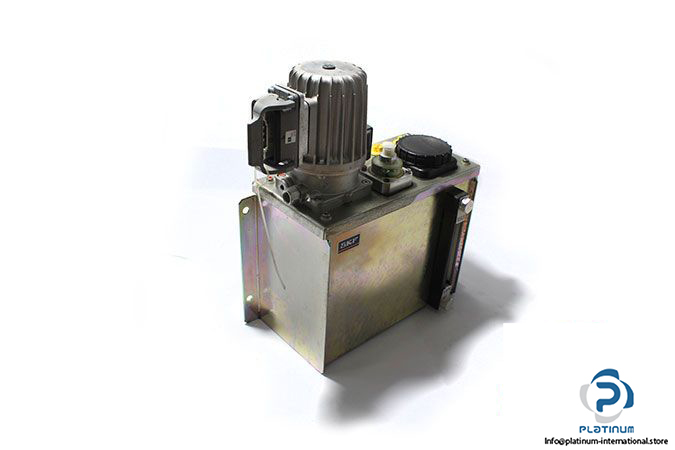

SKF MFE5-BW7-S139+MGP Gear Pump Unit
The SKF MFE5-BW7-S139+MGP is a gear pump unit designed for single-line centralized lubrication systems. Equipped with a three-phase motor, it ensures consistent lubrication flow with reliable performance, high operating efficiency, and robust construction for demanding industrial environments.

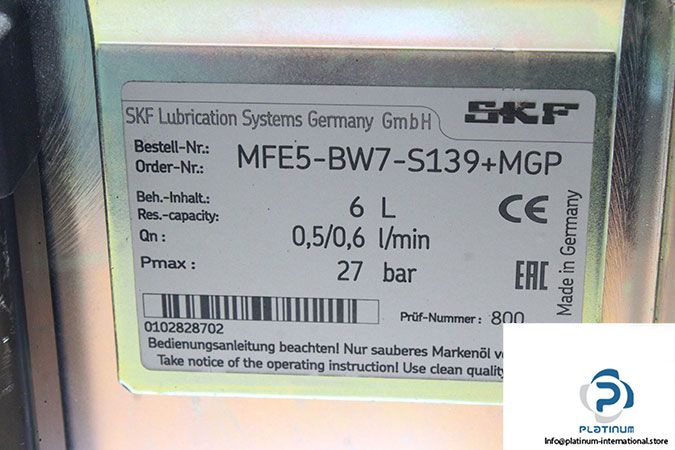

Manufacturer: SKF
Type: Gear Pump Unit
Order No.: MFE5-BW7-S139+MGP
Code: 800
| Used For | Single-line centralized lubrication systems |

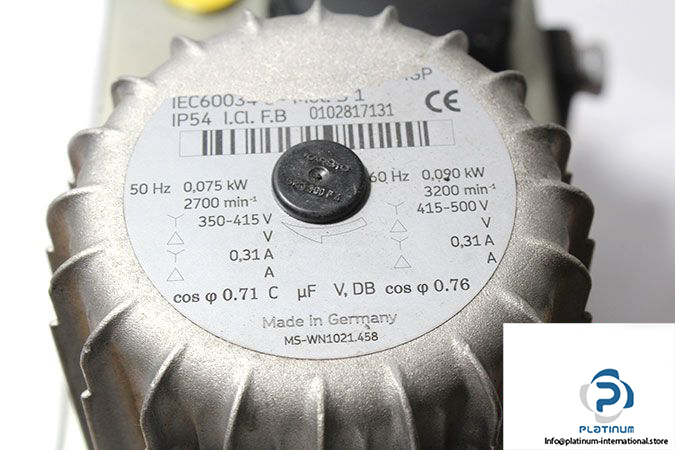

| Motor | Three-phase motor |
| Rated Frequency | 50/60 Hz |
| Rated Voltage (Star, 50 Hz) | 350 / 415 V |
| Rated Voltage (Star, 60 Hz) | 415 / 500 V |
| Rated Current | 0.31 A |
| Rated Power | 0.075/0.09 kW |
| Rated Speed | 2700/3200 min»¹ |
| Rated Flow Rate | 0.5/0.6 l/min |
| Operating Pressure | 27 bar |
| Reservoir Capacity | 6 L |
| Operating Temperature | +10 to 40 °C |
