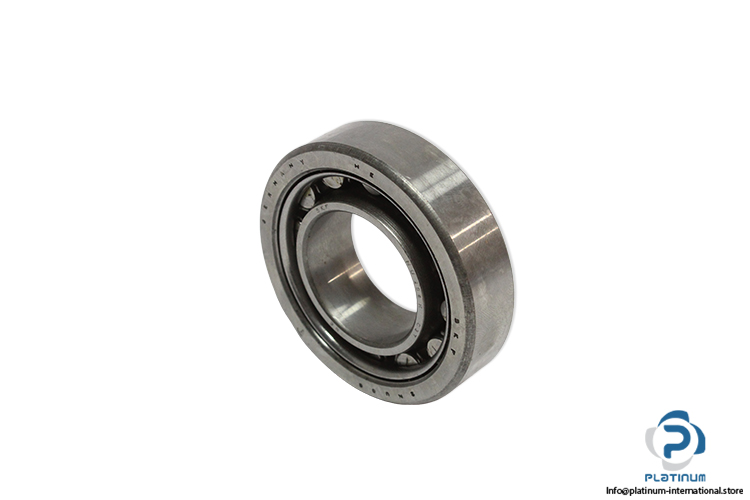

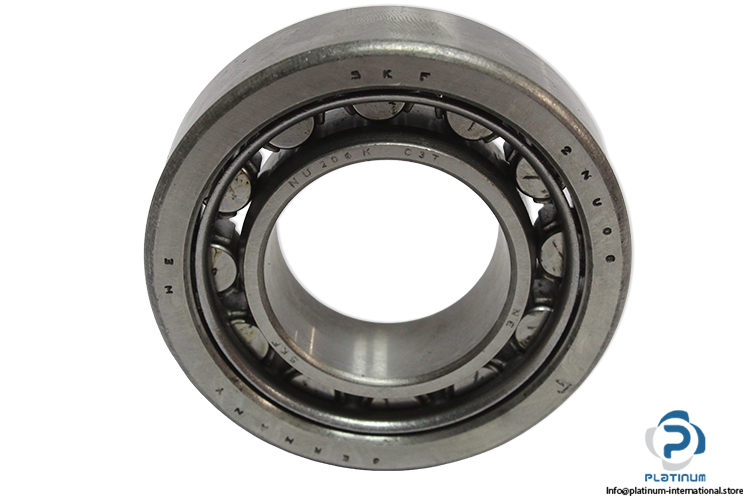

SKF NU 206K C3T Cylindrical Roller Bearing
Neu
Auf Lager2 EinheitenVersandbereit
Zylinderrollenlager SKF NU 206K C3T mit konischem Bohrloch 1:12, C3 Spiel und hoher radialer Tragfähigkeit für industrielle Anwendungen. Ideal für Getriebe und Elektromotormontagen bei hohen Geschwindigkeiten.
206KbearingboreC3C3TClearanceCylindricalElectricGearboxHighIndustrialLoadmotorNUradialRollerSKFtapered
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SKF NU 206K C3T Cylindrical Roller Bearing
The SKF NU 206K C3T cylindrical roller bearing is designed to support high radial loads and operate efficiently at elevated speeds in demanding industrial environments.
Manufacturer: SKF
Type: Cylindrical Roller Bearing
Model: NU 206K C3T
Basic Design: NU, Two Integral Flanges on Outer Ring, Flangeless Inner Ring
Recommended for gearboxes, electric motors, and heavy-duty industrial machinery requiring high radial load capacity.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width | 16 mm |
| Dynamic Load Rating | 44 kN |
| Static Load Rating | 36.5 kN |
| Fatigue Load Limit | 4.5 kN |
| Reference Speed | 13000 r/min |
| Limiting Speed | 14000 r/min |
| Cage | Sheet Metal |
| Clearance | C3 |
| Bore Type | K, Tapered 1:12 |
