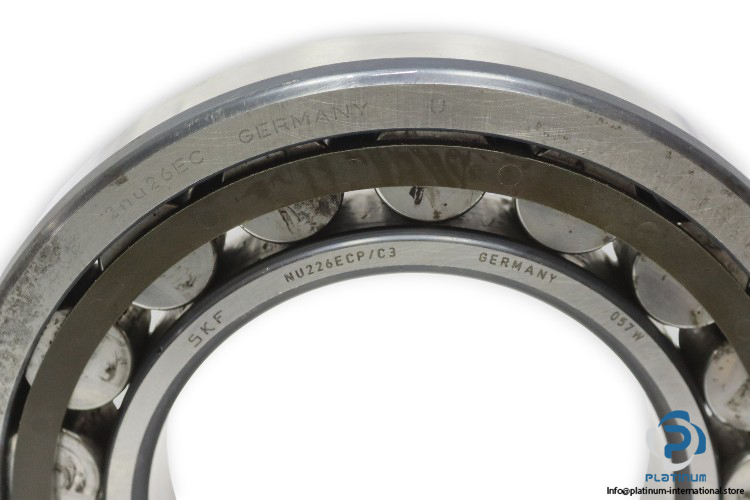

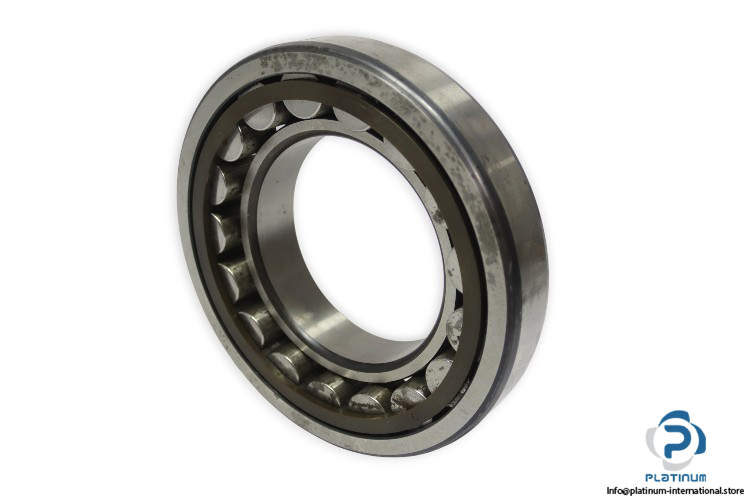

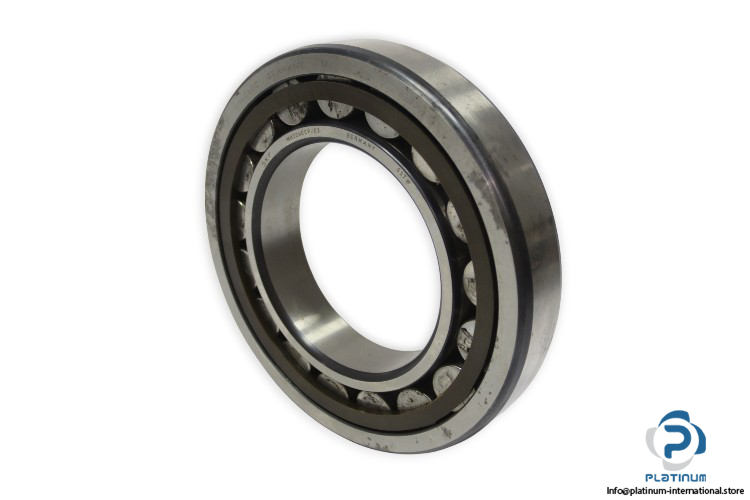

SKF NU 226 ECP/C3 Cylindrical Roller Bearing
Gebraucht
Auf Lager1 EinheitVersandbereit
Zylinderrollenlager einzeln SKF zylinderrollenlager NU226ECP/C3 mit C3 Innenluft, nichtmetallischem Käfig und hoher radialer Tragfähigkeit für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SKF NU226ECP/C3 Cylindrical Roller Bearing
The SKF NU226ECP/C3 is a single row cylindrical roller bearing designed to accommodate high radial loads while maintaining reliable performance at elevated speeds. Its NU design allows axial displacement in one direction, making it suitable for applications where thermal expansion must be accommodated.
Manufacturer: SKF
Type: Single Row Cylindrical Roller Bearing
Model: NU226ECP/C3
| Bore Diameter | 130 mm |
| Outer Diameter | 230 mm |
| Width | 40 mm |
| Basic Dynamic Load Rating | 415 kN |
| Basic Static Load Rating | 455 kN |
| Reference Speed | 3200 rpm |
| Limiting Speed | 3400 rpm |
| Internal Clearance | C3 |
| Cage | Non-metallic |
| Design | NU |
