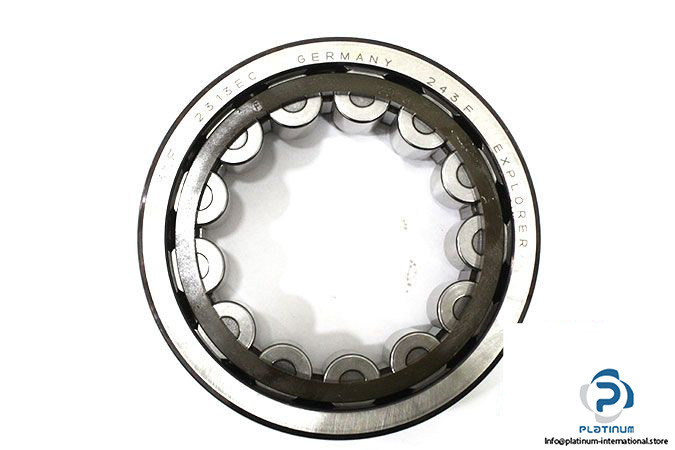

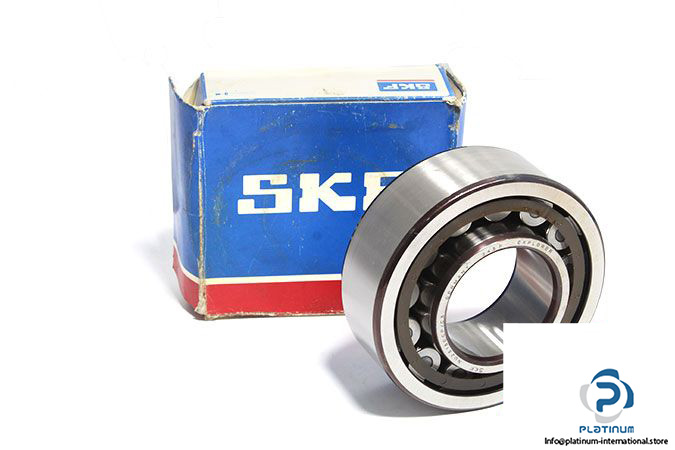

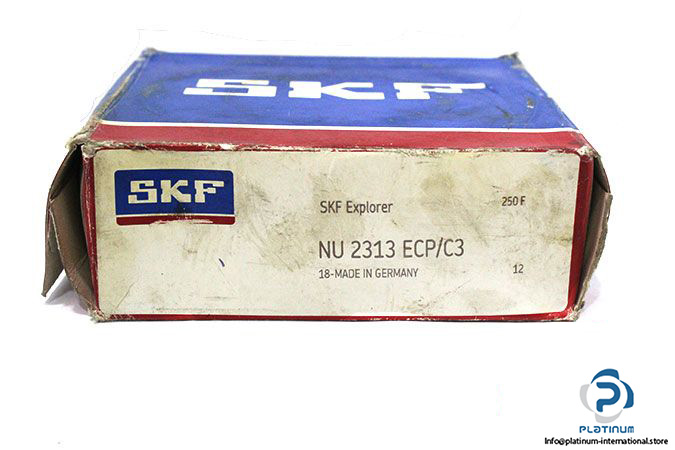

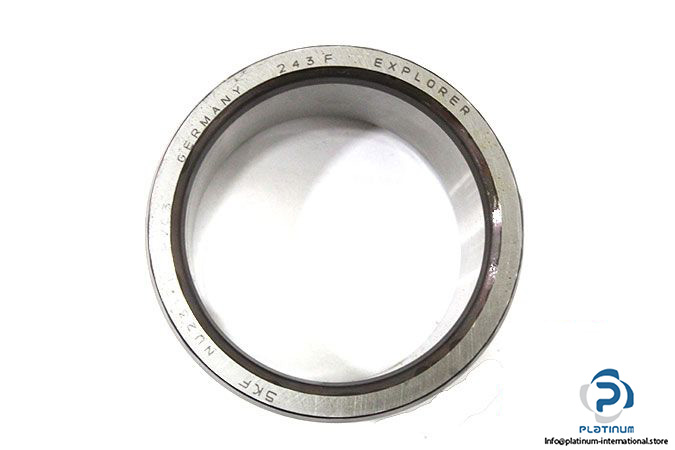

SKF NU 2313 ECP/C3 Cylindrical Roller Bearing

Manufacturer: SKF

Type: ‎ Cylindrical Roller Bearing

Part No: NU 2313 ECP/C3

Bore Diameter: 65 mm

Outer diameter: 140 mm

Width: 48 mm

Basic Load ratings:

Dynamic Load Capacity C_dyn: 285 kN

Static Load Capacity C₀: 290 kN

Fatigue load limit: 38 kN

Limiting Speed: 6000 rpm

Reference Speed: 5300 rpm

Internal design: EC; optimized internal design incorporating more and/or larger rollers and with a modiied roller end / lange contact designed to minimize friction.

Cage design: P; glass ibre reinforced PA66 cage, roller centred

Clearance: C3

Weight: 3.2 kg
