Neu
Auf Lager15 EinheitenVersandbereit
19,99$
ROD END SKF SI10E Gelenkkopf mit 10 mm Bohrung, Stahl/Stahl Kontaktfläche, Rechtsgewinde innen und Tragfähigkeiten von 8,15 kN dynamisch und 19 kN statisch für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

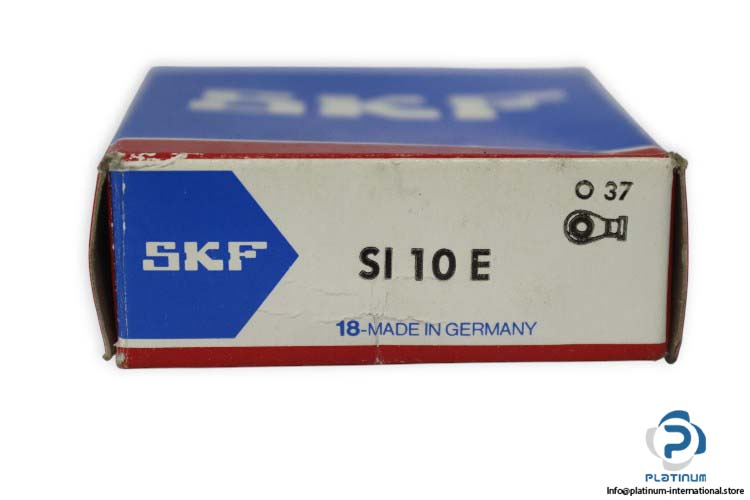

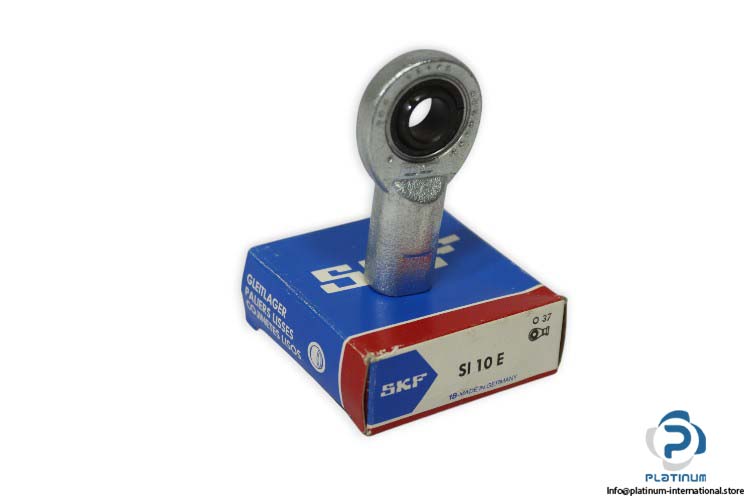

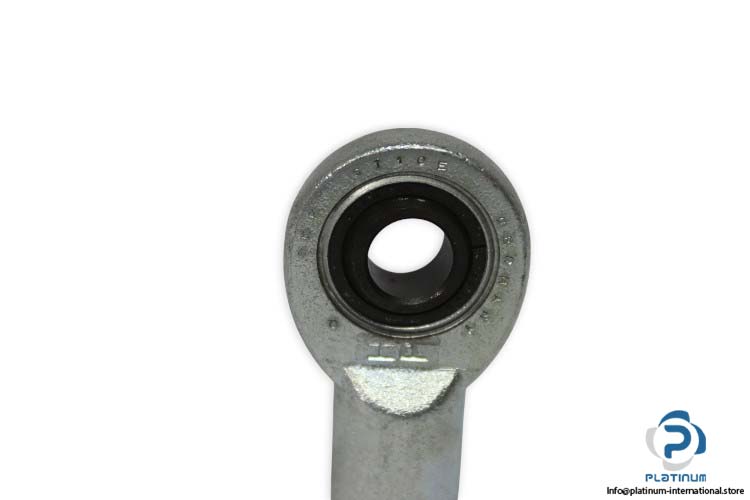

SKF SI10E ROD END
The SKF SI10E Rod End is a durable and high-precision mechanical joint designed for applications requiring smooth angular motion and reliable load-bearing capacity. Featuring a steel/steel sliding contact surface and right-hand female thread, it ensures long-lasting performance in industrial environments.
Manufacturer: SKF
Type: Rod End
Model: SI10E
| Bore Diameter (d) | 10 mm |
| Outer Diameter (D) | 30 mm |
| Width (B) | 9 mm |
| Thread Designation | M 10 |
| Width, Housing Eye | 7.5 mm |
| Centre Height, Housing | 43 mm |
| Housing Length, Total | 60 mm |
| Sliding Contact Surface | Steel/Steel, Standard |
| Attachment Feature, Shank | Right-hand Female Thread |
| Basic Dynamic Load Rating | 8.15 kN |
| Basic Static Load Rating | 19 kN |
