Neu
Auf Lager3 EinheitenVersandbereit
ROD END SKF SIKB 20 F Gelenkauge mit 20 mm Bohrung, M20 x 1,5 Rechtsgewinde, Stahl/PTFE FRP Kontaktfläche und 31 kN dynamischer Tragfähigkeit für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

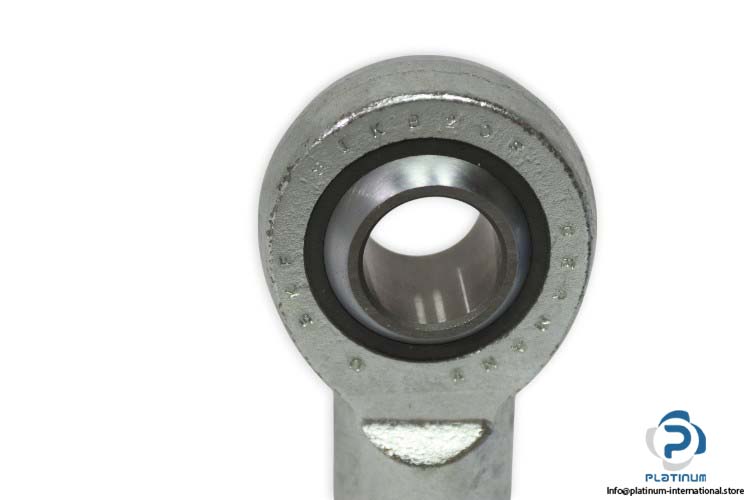

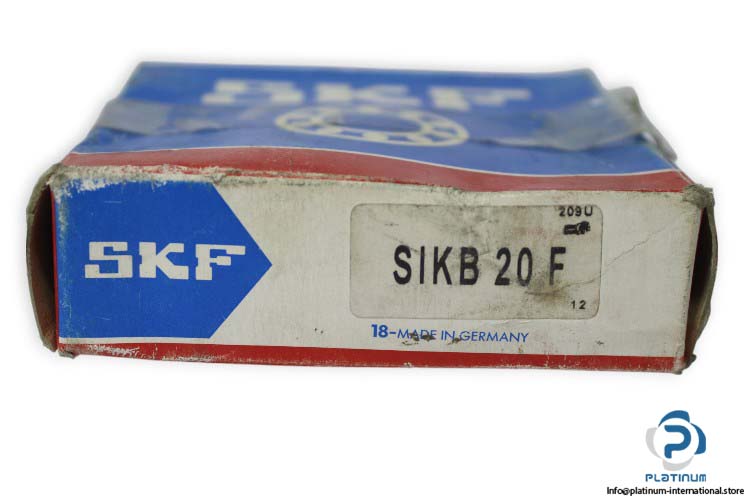

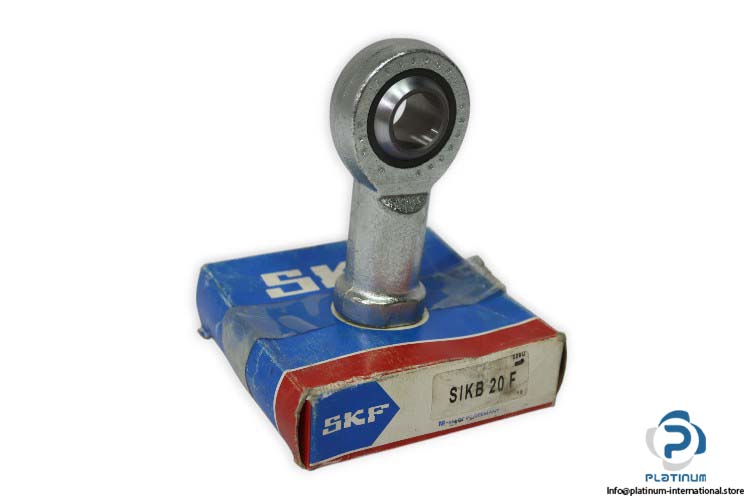

SKF SIKB 20 F ROD END
The SKF SIKB 20 F is a precision-engineered rod end designed for high-load applications, offering reliable performance and smooth movement in industrial linkages and mechanical systems. Featuring a steel/PTFE FRP sliding contact surface, it provides excellent wear resistance and low friction for extended service life.
Manufacturer: SKF
Type: Rod End
Model: SIKB 20 F
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 51 mm |
| Width (B) | 25 mm |
| Thread Designation | M 20 x 1.5 |
| Width, Housing Eye | 18.5 mm |
| Centre Height, Housing | 77 mm |
| Housing Length, Total | 105 mm |
| Sliding Contact Surface Combination | Steel/PTFE FRP |
| Attachment Feature | Right-hand female thread |
| Basic Dynamic Load Rating | 31 kN |
| Basic Static Load Rating | 50 kN |
