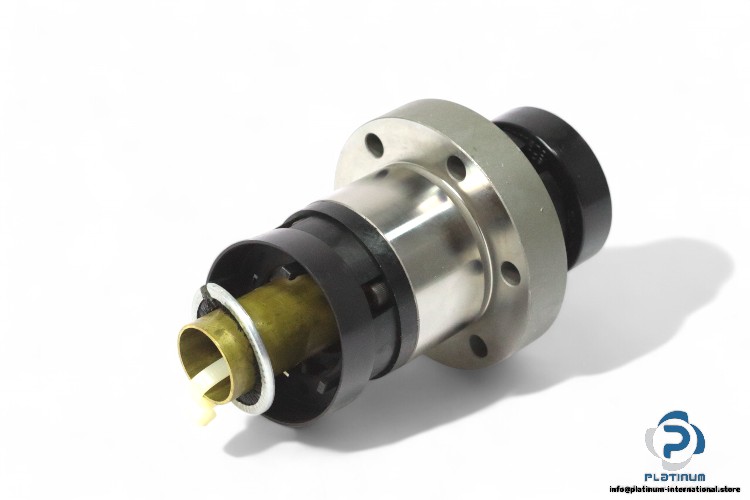

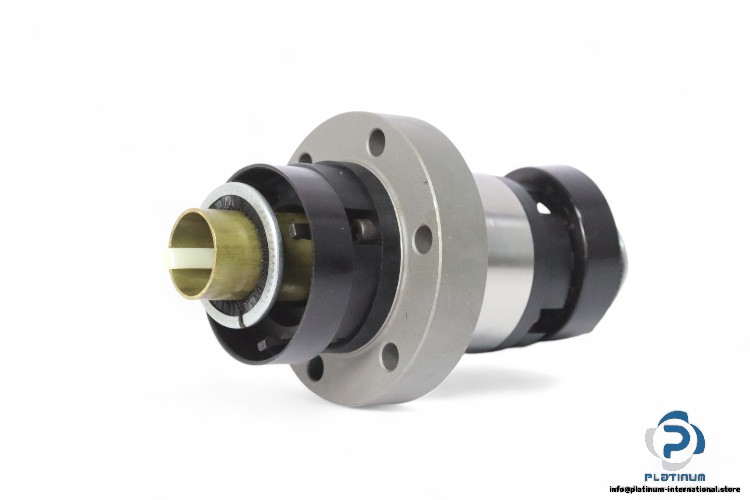

SKF SL 25X25R Flanged NUT Ball Screw

Manufacturer:  SKF
Type: FLANGED NUT BALL SCREW
Model: SL 25X25 R (SL4/TL2)

Nominal size(d0xp_h): 25×25 mm
Nominal screw diameter d0: 25 mm
Lead p: 25 mm

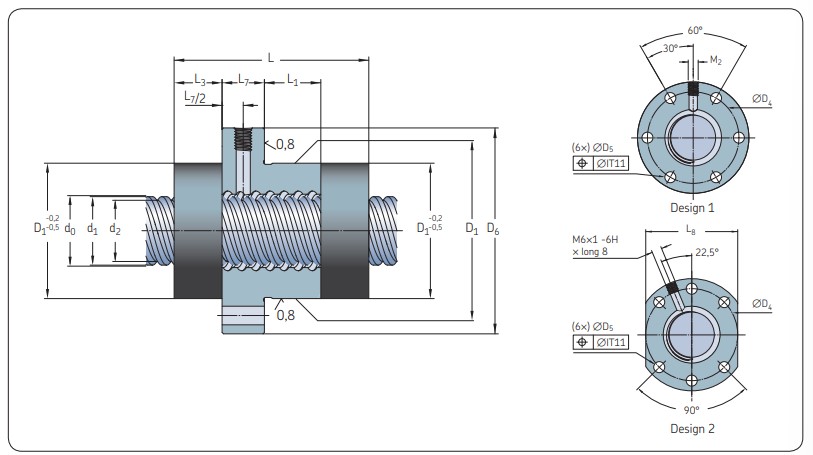

Outside screw diameter d1: 24.4 mm
d2: 21.5 mm
L: 78.2 mm
D1: 48 mm
D4: 60 mm
Direction of Lead: R, Right-Hand Threads
Nut (with play) Load rates:
Dynamic: 22.3 kN
Static: 50.6 kN
Nut (with backlash elimination) Load rates:
Dynamic: 12.3 kN
Static: 25.3 kN
Number of circuits of ball: 4×1,7
Nut type: SL, Long lead screw, axial play – TL, Long lead screw, backlash elimination
