SKF YAR 212-2F Insert Ball Bearing
Neu
Auf Lager1 EinheitVersandbereit
99,99$
Robustes INSERT KUGELLAGER von SKF mit 60 mm Bohrung und kugelförmigem Außenring, bietet 52,7 kN dynamische Tragfähigkeit und sichere Passung mit beidseitiger Verlängerung und Einstellschrauben.
212-2F60BallbearingboreCylindricalflingerHighIndustrialinsertLoadmmOuterRingscrewSealSetSKFSphericalYAR
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

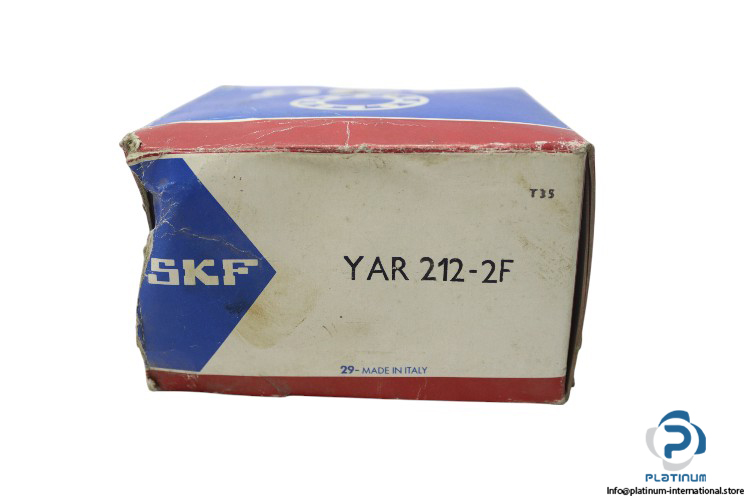

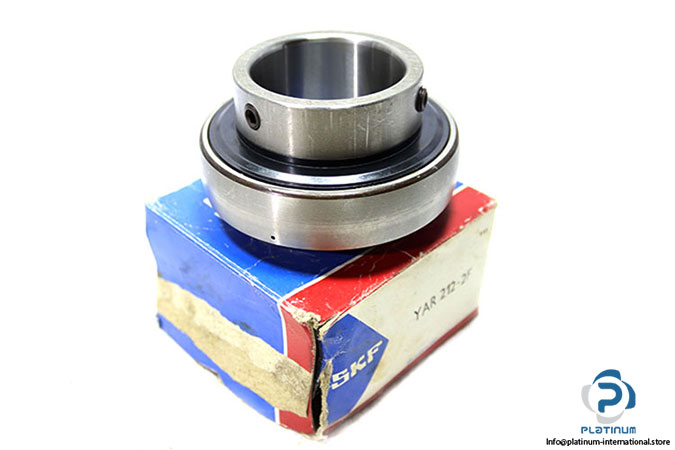

SKF YAR 212-2F INSERT BALL BEARING
SKF™s YAR 212-2F insert ball bearing is designed for reliable performance in high-load and high-speed applications. It features robust sealing, double-side inner ring extension, and set screws for secure mounting, making it ideal for use in demanding industrial environments.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YAR 212-2F
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 110 mm |
| Width of Inner Ring (B) | 65.1 mm |
| Width of Outer Ring (C) | 26 mm |
| Basic Load Ratings “ Dynamic (C) | 52.7 kN |
| Basic Load Ratings “ Static (C0) | 36 kN |
| Fatigue Load Rating | 1.53 kN |
| Limiting Speed | 3400 rpm |
| Inner Ring Extension | On Both Sides |
| Outer Ring Type | Spherical |
| Retaining Feature, Inner Ring | Set Screws |
| Sealing | Seal and Flinger on Both Sides |
| Bore Type | Cylindrical |
