SMC 25A-ISE20B-T-01-W Pressure Switch
Neu
Auf Lager4 EinheitenVersandbereit
29,99$

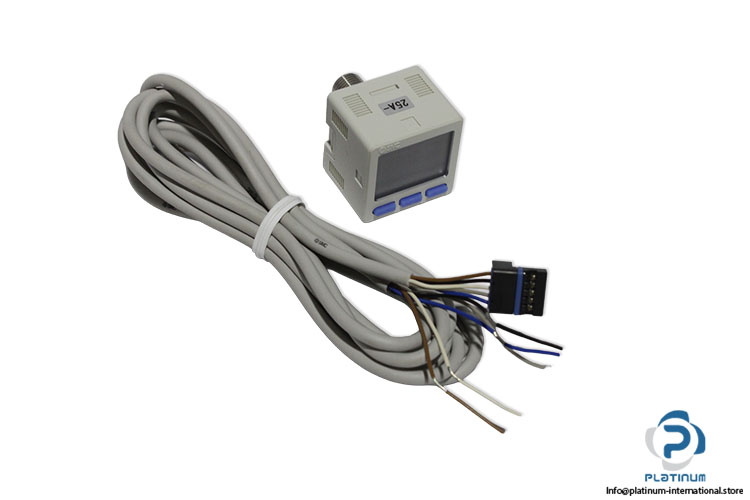

Pressure Switch SMC 25A-ISE20B-T-01-W digital pressure switch with LCD display, PNP outputs, and analog voltage output, designed for positive air pressure monitoring in industrial systems.
25A-ISE20B-T-01-WAirAnalogDigitalIndustrialIP65ISE20BLCDOutputpPneumaticPNPPressureR1/8SensorSeriesSMCSwitch
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Series | ISE20B Positive Pressure |
| Fluid | Air |
| Rated Pressure Range | -0.100 … 1.000 MPa |
| Display/Set Pressure Range | -0.105 … 1.050 MPa |
| Voltage | 12 … 24 V DC |
| Current Consumption Max. | 35 mA |
| Output Specification | PNP Open Collector 2 Outputs + Analog Voltage Output |

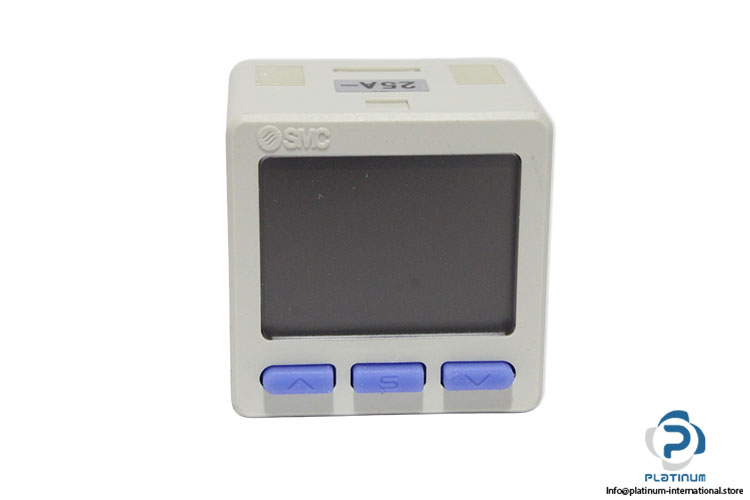

| Display Type | LCD |
| Unit | (MPa, kPa, kgf/cm2, bar, psi) |

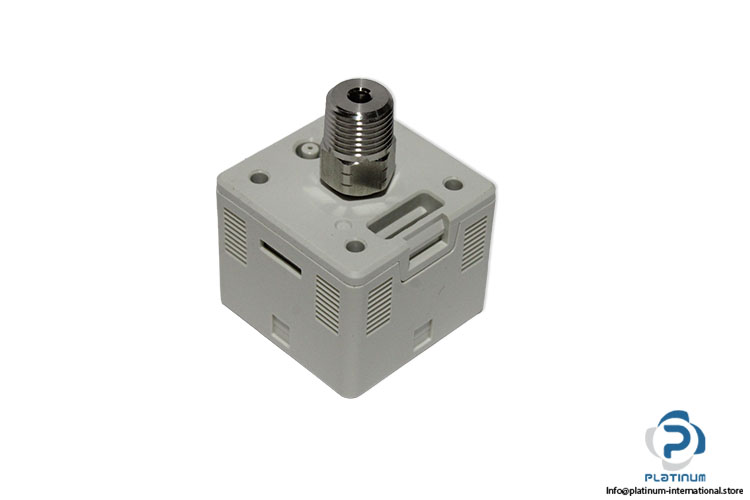

| Piping Connection | R1/8 |

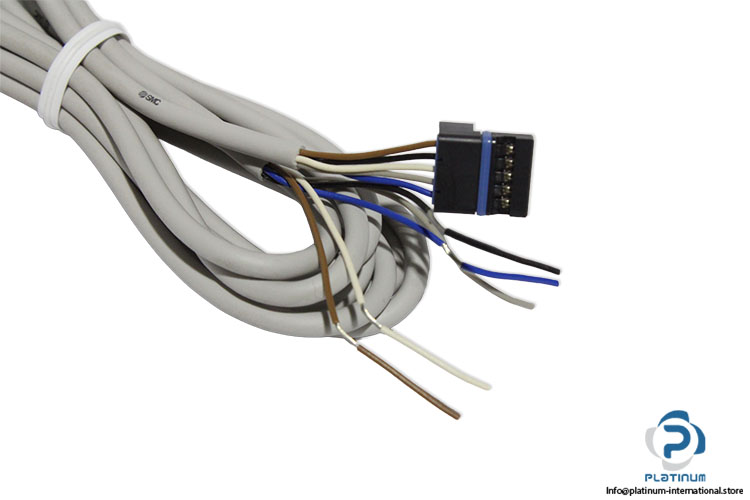

| Connection | Lead Wire with Connector (5-Core, 2 m Lead Wire, with Waterproof Cover) |
| Protection Class | IP65 |
| Operating Temperature | -5 … 50 °C |
| Dimensions | 30 x 30 x 25 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1092912 |
| Weight | 0,08 |
