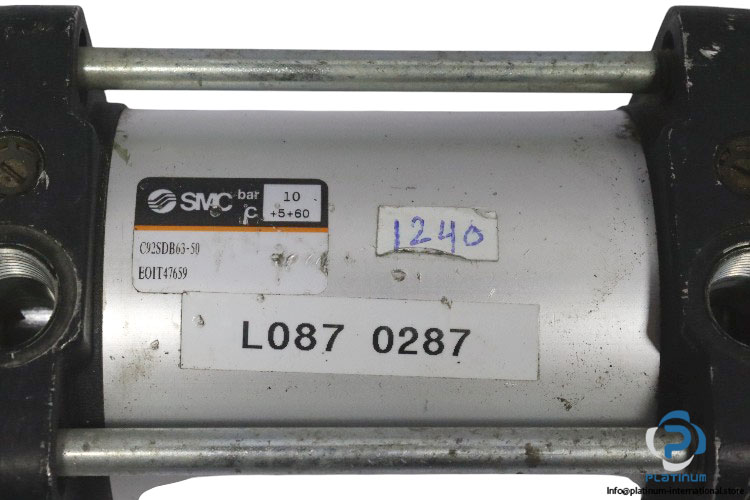

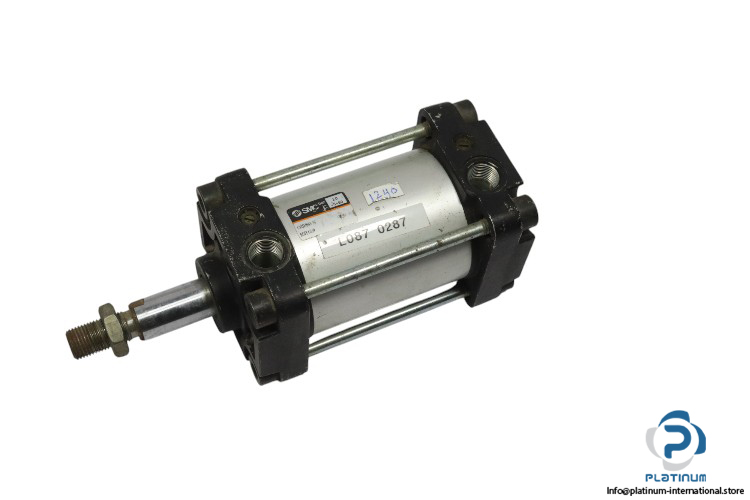

SMC C92SDB63-50 ISO Cylinder

SMC ISO Cylinder C92SDB63-50

The SMC ISO Cylinder C92SDB6350 is designed for efficient pneumatic control in industrial applications. With a 63 mm bore diameter, 50 mm stroke, and a maximum pressure of 10 bar, this double-acting cylinder ensures reliable and smooth operation. Its square shape and male piston rod end make it versatile for various system designs.

Manufacturer: SMC

Model: C92SDB63-50

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 50 mm
• Bore x Stroke: 63 × 50 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 85 x 165 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
