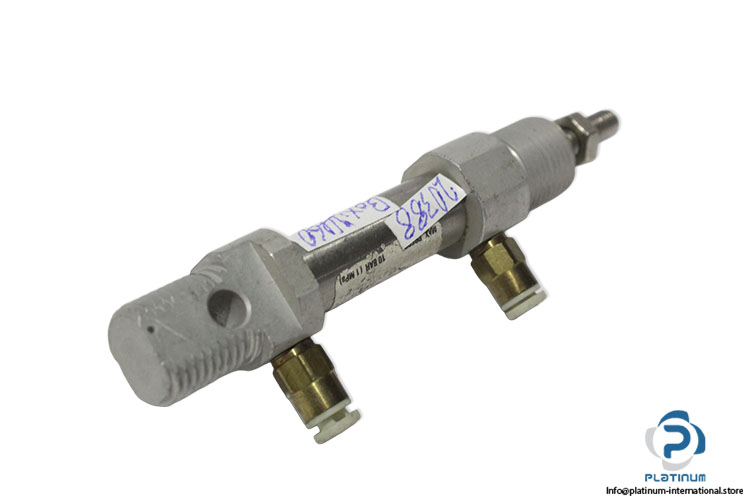

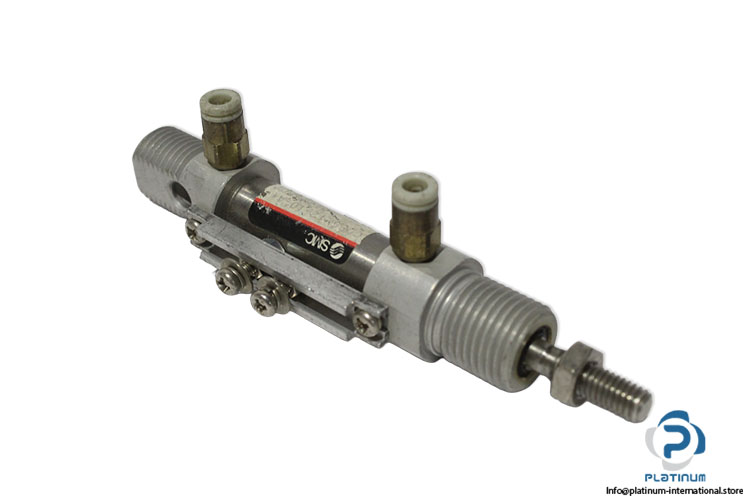

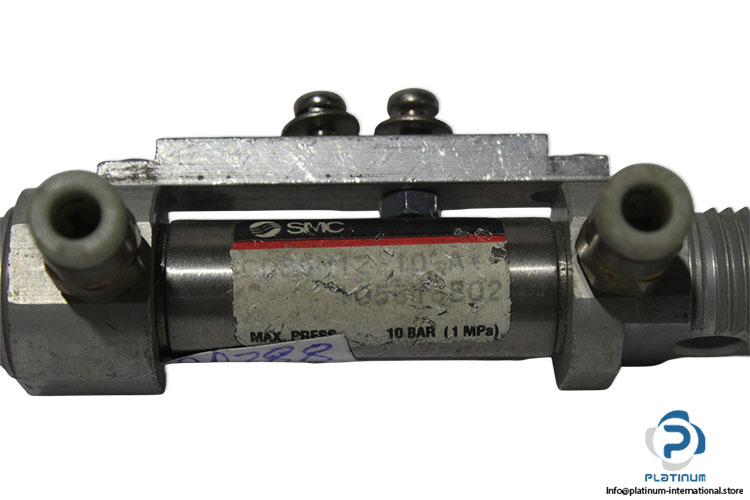

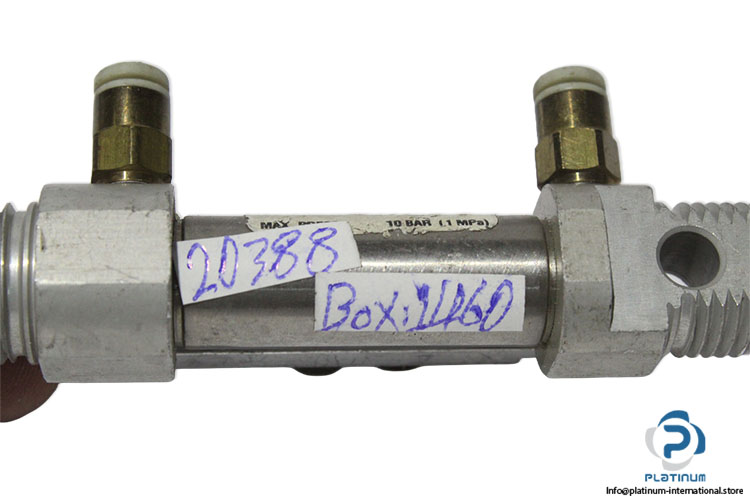

SMC CD85N12-10-A ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO-Zylinder SMC CD85N12 10 A Ein kompakter doppeltwirkender Pneumatikzylinder mit 12 mm Bohrung, 10 mm Hub, eingebautem Magneten, Kolbenstange aus Edelstahl und einem Betriebsdruck bis zu 1,0 MPa für industrielle Automatisierungsanwendungen.
10aActingActuatorAirC85CD85N12CompactCylinderDoubleIndustrialISOPneumaticRODSeriesSingleSMCstainlessSteel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Series | C85 |
| Fluid | Air |
| Stroke | 10 mm |
| Bore Size | 12 mm |
| Piston Rod Diameter | 6 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Rubber cushion (standard) |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Basic integrated clevis (N-type) |
| Magnet | Built-in magnet |
| Auto switch mounting type | Rail mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M6 x 1 |
| Port size | 5mm |
| Material Rod cover | aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | stainless steel |
| Material Bush | Sintered bronze |
| Ambient and fluid temperature | -20 to 80°C |
| Condition | Used |
| Stock Key | JO-004 |
| SKU | 1097380 |
| Weight | 0,10 |
