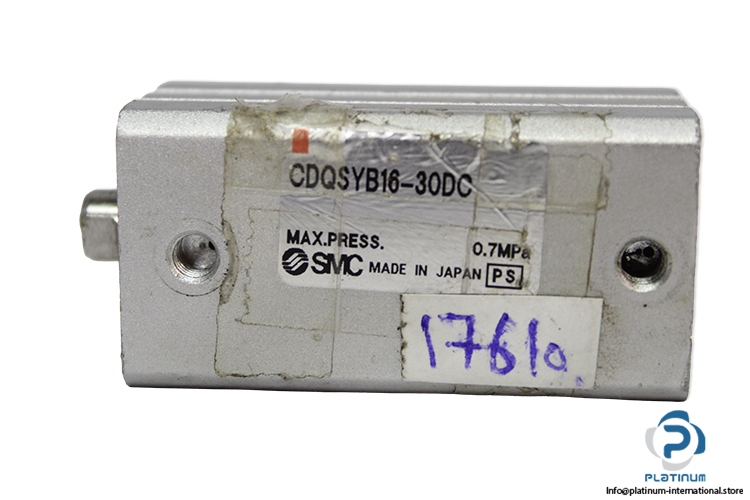

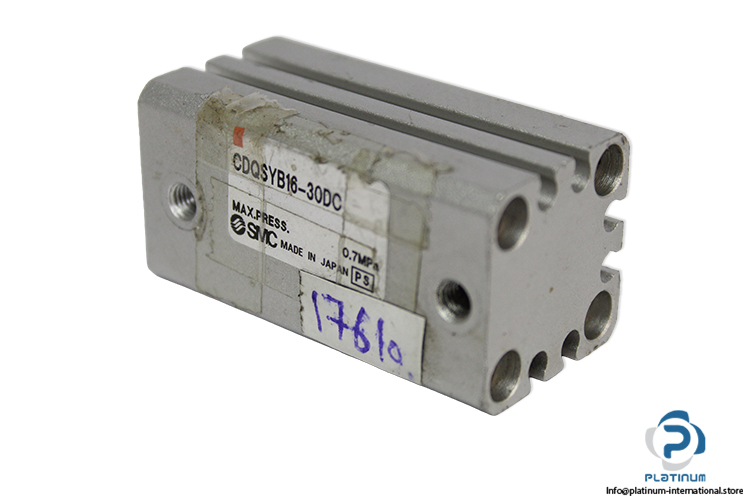

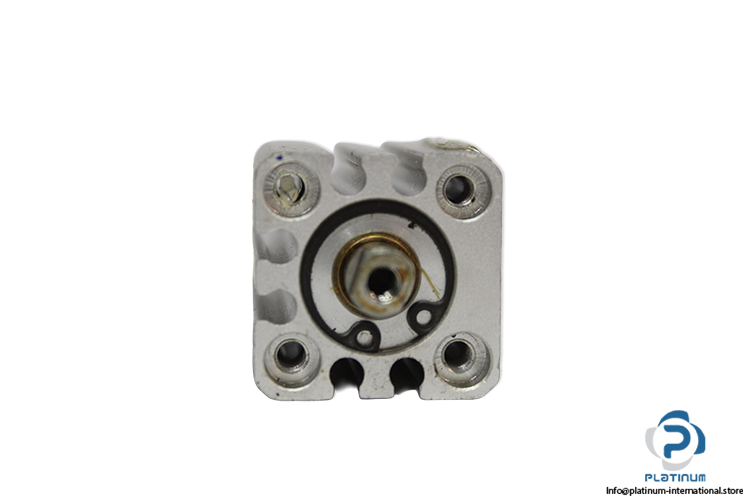

SMC CDQSYB16-30DC Compact Cylinder
Compact Cylinder
High-performance SMC compact cylinder with external guide rods, designed for precise linear movement, stability, and reliable operation in industrial automation.SMC CDQSYB16 30DC Compact Cylinder with External Guide Rods
A high-precision compact pneumatic cylinder engineered by SMC for smooth, accurate, and reliable linear motion. Built with external guide rods for superior stability and resistance to lateral loads, this actuator is ideal for applications requiring compact size, long service life, and controlled movement in industrial automation systems. Manufacturer: SMC
Type: Compact Cylinder with external guide rods
Model: CDQSYB16 30DC
Recommended For:
Ideal for automated assembly systems, precision positioning mechanisms, pick-and-place units, and any machinery requiring compact motion control with enhanced stability. Why Customers Choose This Model:
The SMC CDQSYB16 30DC delivers outstanding accuracy, smooth motion, and structural rigidity thanks to its external guide rods. It minimizes vibration, prevents rod rotation, and offers exceptional longevity, making it a highly reliable solution for demanding industrial environments. Its compact structure allows it to fit into tight spaces without compromising performance, reducing machine footprint and improving overall operational efficiency.
| Operating Medium | Air |
| Stroke Length | 30 mm |
| Piston Diameter | 16 mm |
| Rod End Thread | Female Thread |
| Max. Operating Pressure | 0.7 MPa |
| Mode of Operation | Double Acting |
| Pneumatic Connection | 5 mm |
| Recommended Category | Pneumatic Cylinders |
