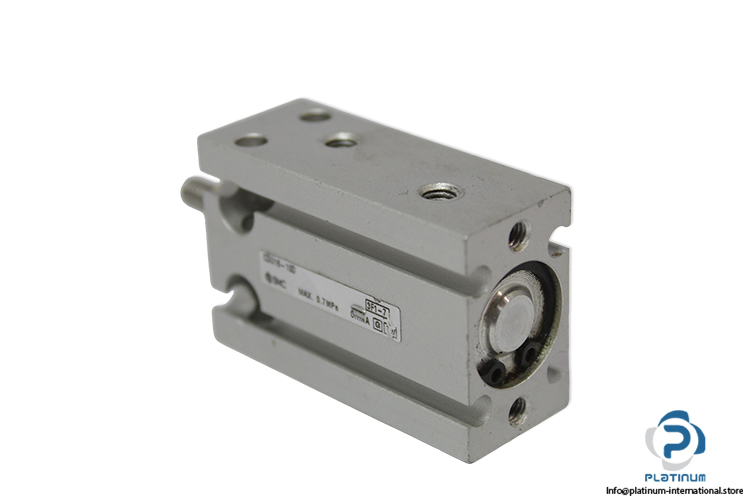

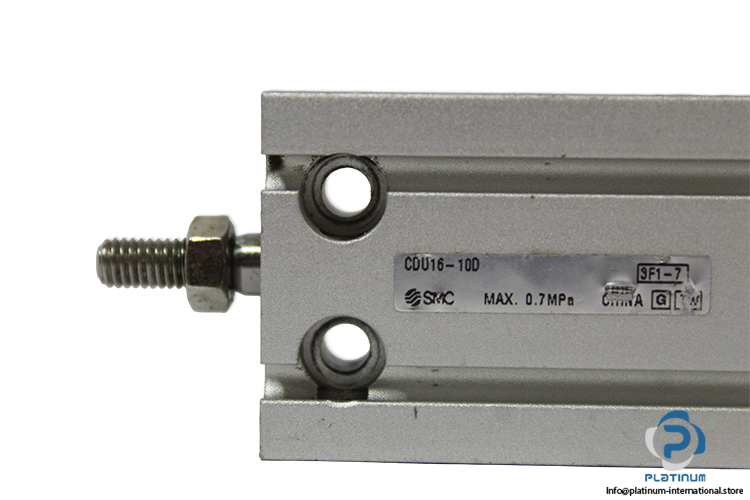

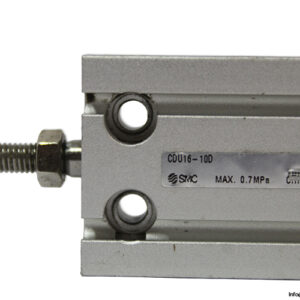

SMC CDU16-10D Free Mount Cylinder
Free Mount Cylinder
Compact SMC free mount cylinder delivering smooth double-acting motion, reliable performance, and flexible mounting for industrial and automation applications.SMC CDU16-10D Free Mount Cylinder
A compact and lightweight pneumatic cylinder designed for precise motion control and flexible mounting in automation systems. Built with SMC™s reliable engineering, this free mount cylinder delivers smooth actuation, stable performance, and long service life in industrial applications. Manufacturer: SMC
Type: Free Mount Cylinder
Model: CDU16 10D
Series: CU
Recommended for Customers:
The SMC CDU16-10D is ideal for compact automation setups where precise, repeatable motion is essential. Its non-lube operation ensures reduced maintenance, while the robust double-acting design provides reliable force output. This cylinder is perfect for pick-and-place systems, small machinery, industrial automation, and assembly line equipment. Choose this model for enhanced durability, consistent performance, and easy integration into existing pneumatic systems.
Enhance your automation efficiency with compatible components available at Platinum International, including Electric Motion Solutions and Industrial Automation Parts.
| Operating Medium | Air |
| Stroke Length | 10 mm |
| Piston Diameter | 6 mm |
| Rod End Thread | Male Thread |
| Proof Pressure | 1.05 MPa |
| Max. Operating Pressure | 0.7 MPa |
| Mode of Operation | Double Acting Single Rod |
| Pneumatic Connection | 5 mm |
| Lubrication | Non-lube |
| Piston Speed | 50 to 400 mm/s |
| Ambient and Fluid Temperature | -10 to 60°C |
