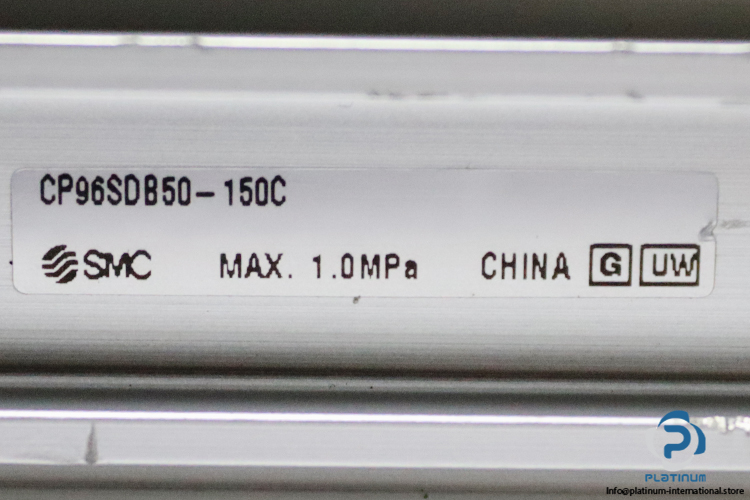

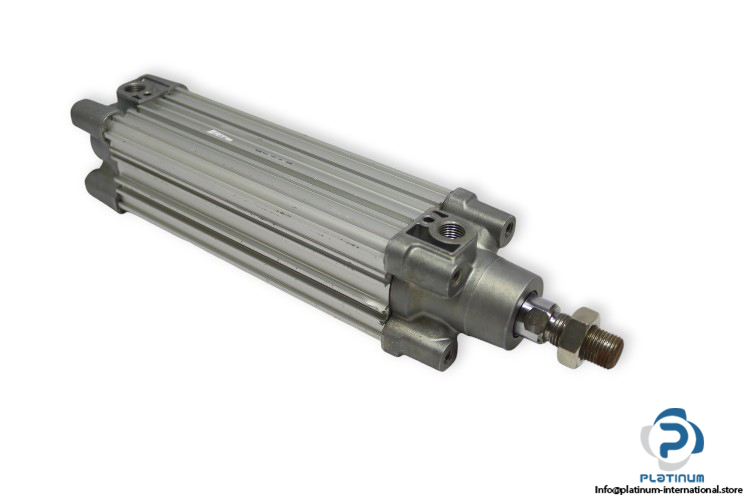

SMC CP96SDB50-150C ISO Cylinder
Manufacturer: SMC
Type: ISO Cylinder
Model: CP96SDB50150C
Media: Compressed Air
Stroke (mm): 150
Bore diameter (mm): 50
BorexStroke (mm): 50×150
Rod diameter (mm): 20
Fram Dimensions (mm): 285×65
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
