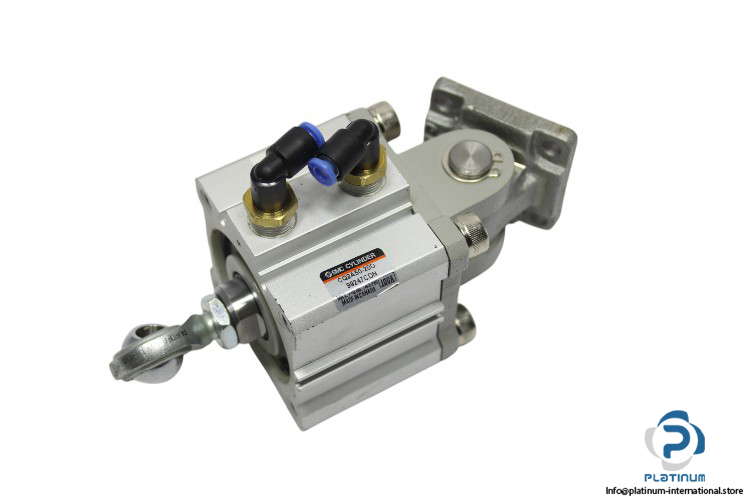

SMC CQ2A50-20D Compact Cylinder
Neu
Auf Lager1 EinheitVersandbereit
compact cylinder
The SMC Compact Cylinder CQ2A50-20D (MNR: CQ2A50-20D-99247CDN) is a single-acting pneumatic cylinder with 20 mm stroke length, 50 mm piston diameter, and 1.0 MPa operating pressure.1.01.52050ActingconnectionControlCylinderdiameterG1/4LengthmmMotionMPaOperatingPistonPneumaticPressureProofSingleStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SMC COMPACT CYLINDER
The SMC Compact Cylinder (Model: CQ2A50-20D, MNR: CQ2A50-20D-99247CDN) is designed for precise and efficient motion control in pneumatic systems. With a piston diameter of 50 mm and a stroke length of 20 mm, this single-acting cylinder operates effectively at a maximum pressure of 1.0 MPa, making it ideal for compact and space-constrained applications.
Manufacturer: SMC
Type: Compact Cylinder

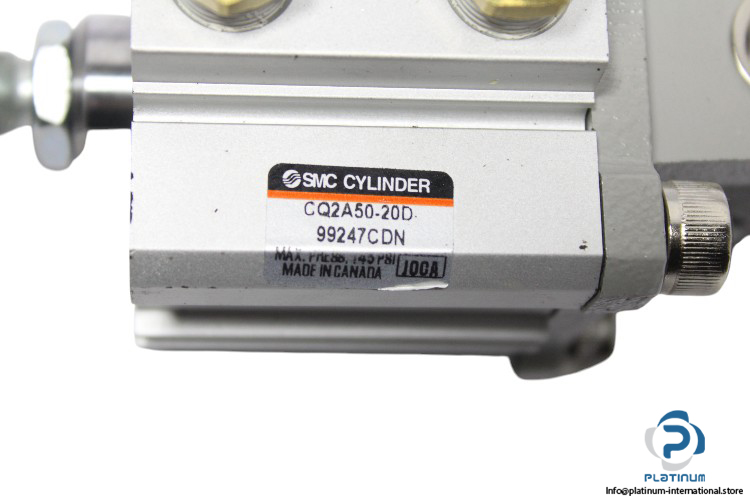

Model: CQ2A50-20D
MNR: CQ2A50-20D-99247CDN
Technical Specifications
- Stroke Length: 20 mm
- Piston Diameter: 50 mm
- Fluid: Air
- Proof Pressure: 1.5 MPa
- Mounting: Both ends tapped
- Max. Operating Pressure: 1.0 MPa
- Mode of Operation: Single acting
- Pneumatic Connection: G1/4
