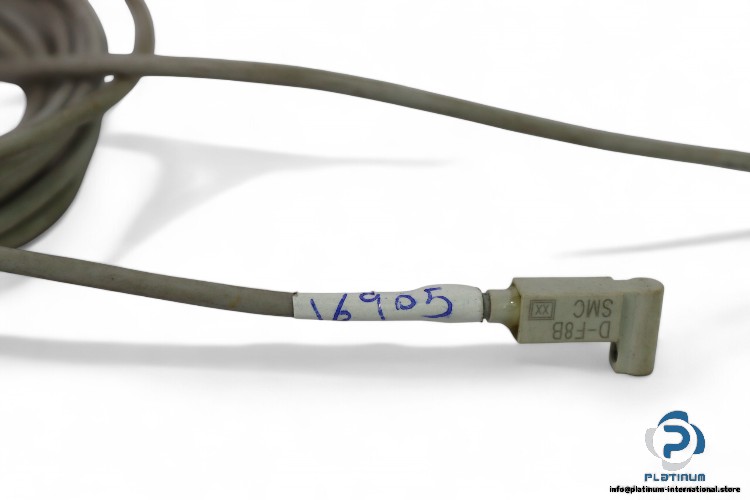

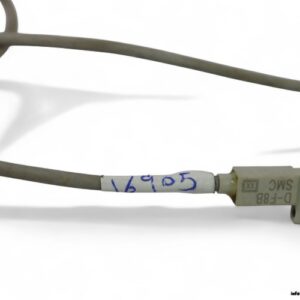

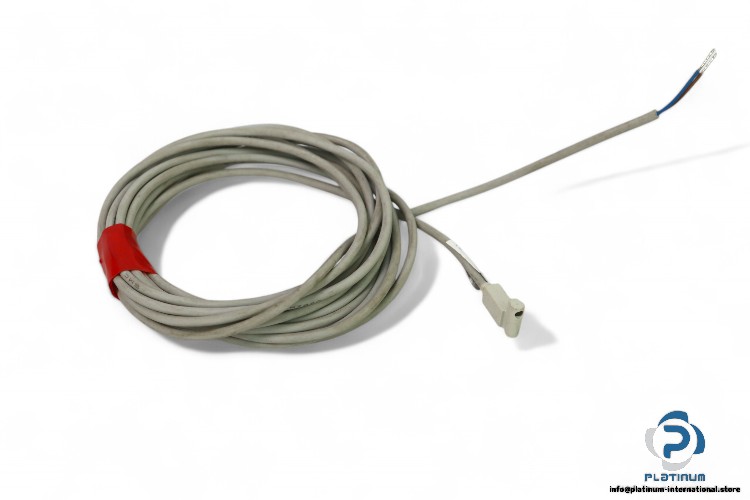

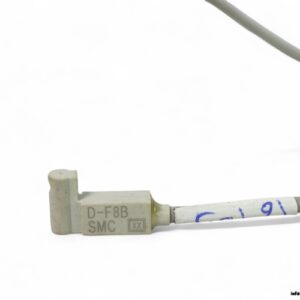

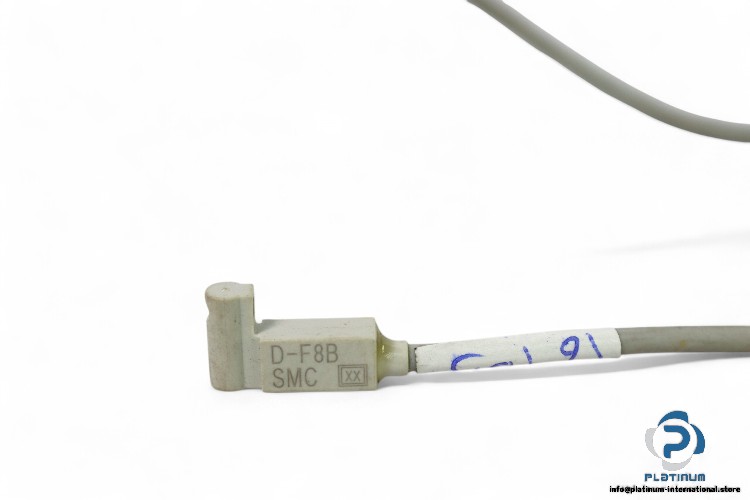

SMC D-F8B Solid State Auto Switch

Manufacturer: SMC
Type: SOLID STATE AUTO SWITCH (Magnetic Sensor)
Model: D-F8B

Electrical entry direction: Perpendicular
Wiring type: 2-wire
Applicable load: 24 VDC relay, PLC
Load voltage: 24 VDC (10 to 28 VDC)
Load current: 2.5 to 40 mA
Internal voltage drop: 4 V or less
Leakage current: 0.8 mA or less at 24 VDC
Indicator light: Red LED illuminates when turned ON
Sheath:
Outside diameter: 2.7 mm
Insulator:

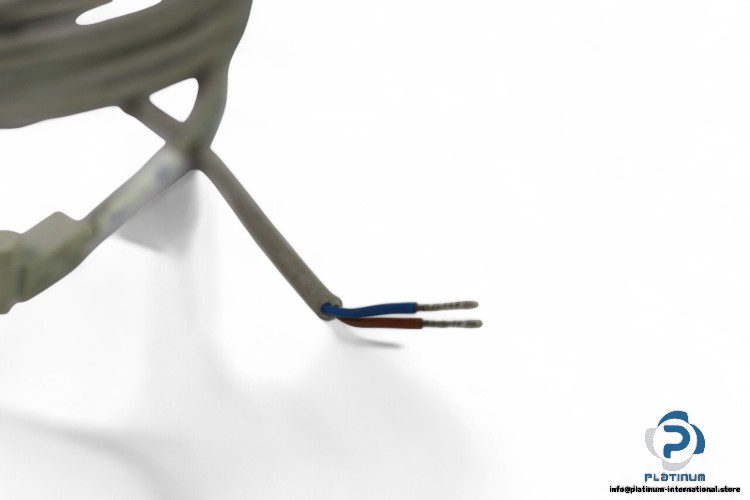

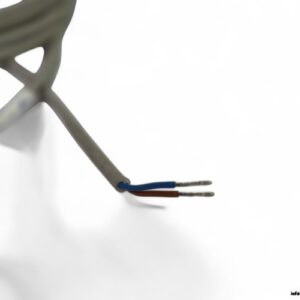

Number of cores: 2 cores (Brown/Blue)
Outside diameter: 0.96 mm
Conductor:
Effective area: 0.18 mm²
Strand diameter: 0.08 mm
Minimum bending radius: 17 mm
