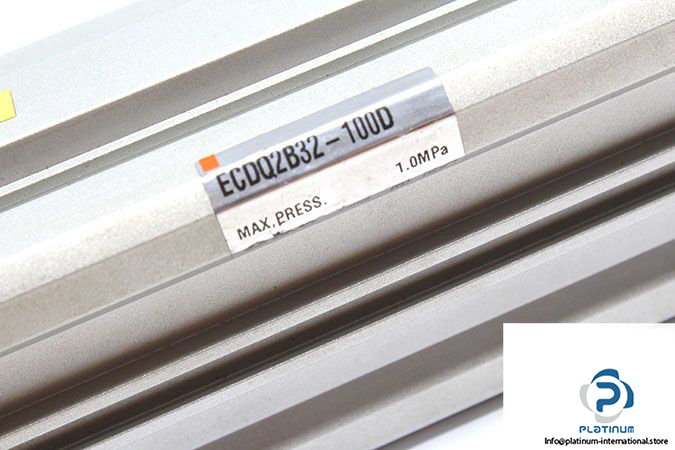

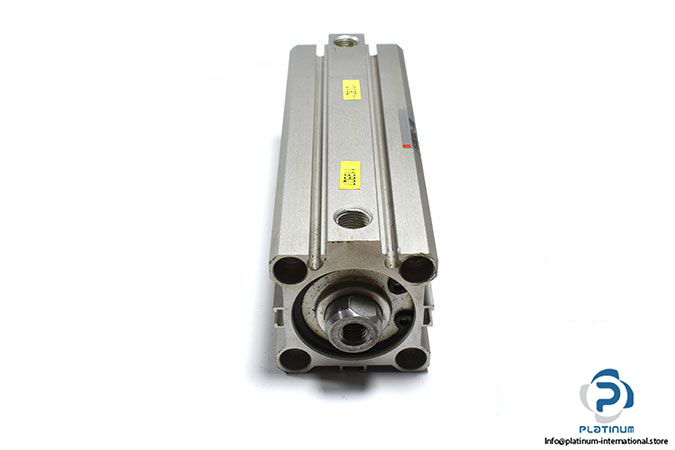

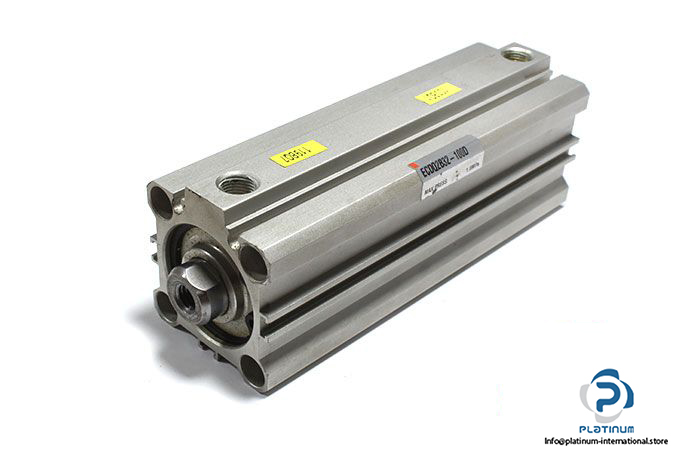

SMC ECDQ2B32-100D COMPACT Cylinder
Manufacturer: SMC
Type: Double Acting Compact Cylinder
Model: ECDQ2B32-100D
Mounting: Through-hole (Standard)
Bore size: 32 mm
Stroke Length: 100 mm
Mode Of Operation: Double Acting
Dimensions ( Length x Width x Height ): 140 x 58.5 x 45 mm
Compact cylinder type: Standard
Fluid: Air
Max. Operating pressure: 1.0 Mpa
Temperature: -10 … 70 °C
Weight: 0.57 kg
